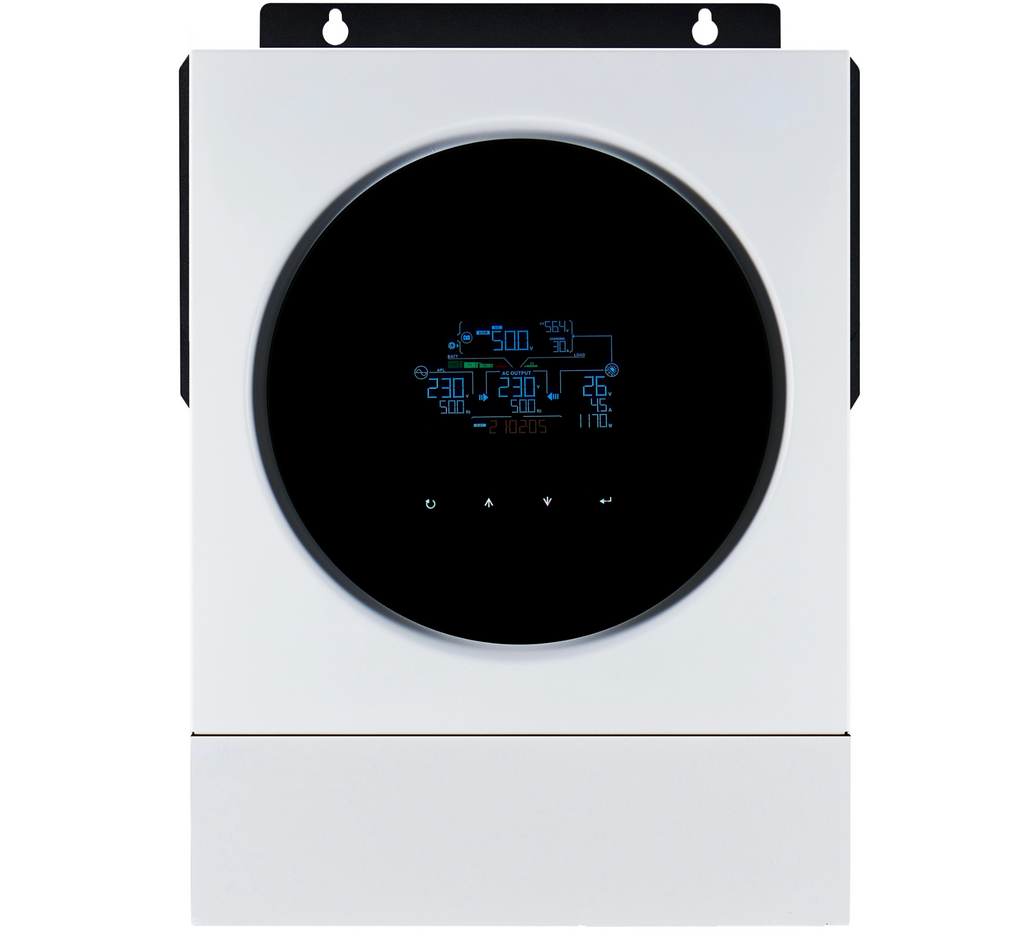

Compact and powerful hybrid inverter (4 kW) with two independent AC outputs for flexible load management. Integrated MPPT solar charger with wide voltage input range, color LCD with touch operation, Wi‑Fi monitoring, and customizable LED status display – ideal for modern off-grid or hybrid PV systems. Ready for shipment within 24 hours after payment.
Technical Specifications:
-
Rated Power: 4 000 VA / 4 000 W (pure sine wave)
-
Dual AC Outputs: Intelligent load management with timer-controlled operation
-
MPPT & Solar Input:
-
MPPT Solar Charger
-
Max PV Power: approx. 5 000 W
-
Max PV Input Current: approx. 27 A
-
MPPT Voltage Range: 60 – 450 V DC
-
Start Voltage: approx. 60 V DC ±10 V
-
-
Operation & Interface:
-
Large color LCD with touch, RGB LED ring status display
-
Integrated Wi‑Fi for control & monitoring, USB On-The-Go
-
Communication & Protection:
-
RS‑485, CAN‑Bus, RS‑232, and Dry-Contact as BMS interfaces
-
Anti-Dust Kit for protection against contamination
-
-
Input/Output Data:
-
AC Input Range: 170–280 V (PC mode), 90–280 V (household appliances)
-
Waveform: Pure sine wave, Efficiency: approx. 90–93 % peak
-
Transfer Time: approx. 10 ms (PC mode), 20 ms (household appliances)
-
Surge Power: approx. 8 000 VA
-
-
Power Supply & Protection Voltage:
-
Battery Voltage: 24 V DC
-
Float Charge Voltage: approx. 27 V; Overcharge Protection: approx. 33 V DC
-
-
Dimensions & Environment:
-
Dimensions (D × W × H): approx. 119 × 314 × 458 mm
-
Weight: approx. 10 kg
-
Operating Temperature: –10 °C to +50 °C
-
Storage Temperature: –15 °C to +60 °C
-
Humidity: 5 % – 95 % non-condensing
-
Product Detail Block:
-
Model: VM IV Twin 4 kW (24 V)
-
Product Type: Hybrid Inverter with MPPT, Dual AC Outputs
-
Material & Protection: Metal housing with Anti-Dust Kit
-
Weight: approx. 10 kg net
-
Origin: Voltronic Power – Axpert Series
-
Special Advantages:
– Flexible dual-circuit outputs for intelligent power distribution
– Efficient solar charging with reduced panel requirements
– Modern operation with color LED ring & Wi-Fi monitoring
– Robust construction with low maintenance requirements
