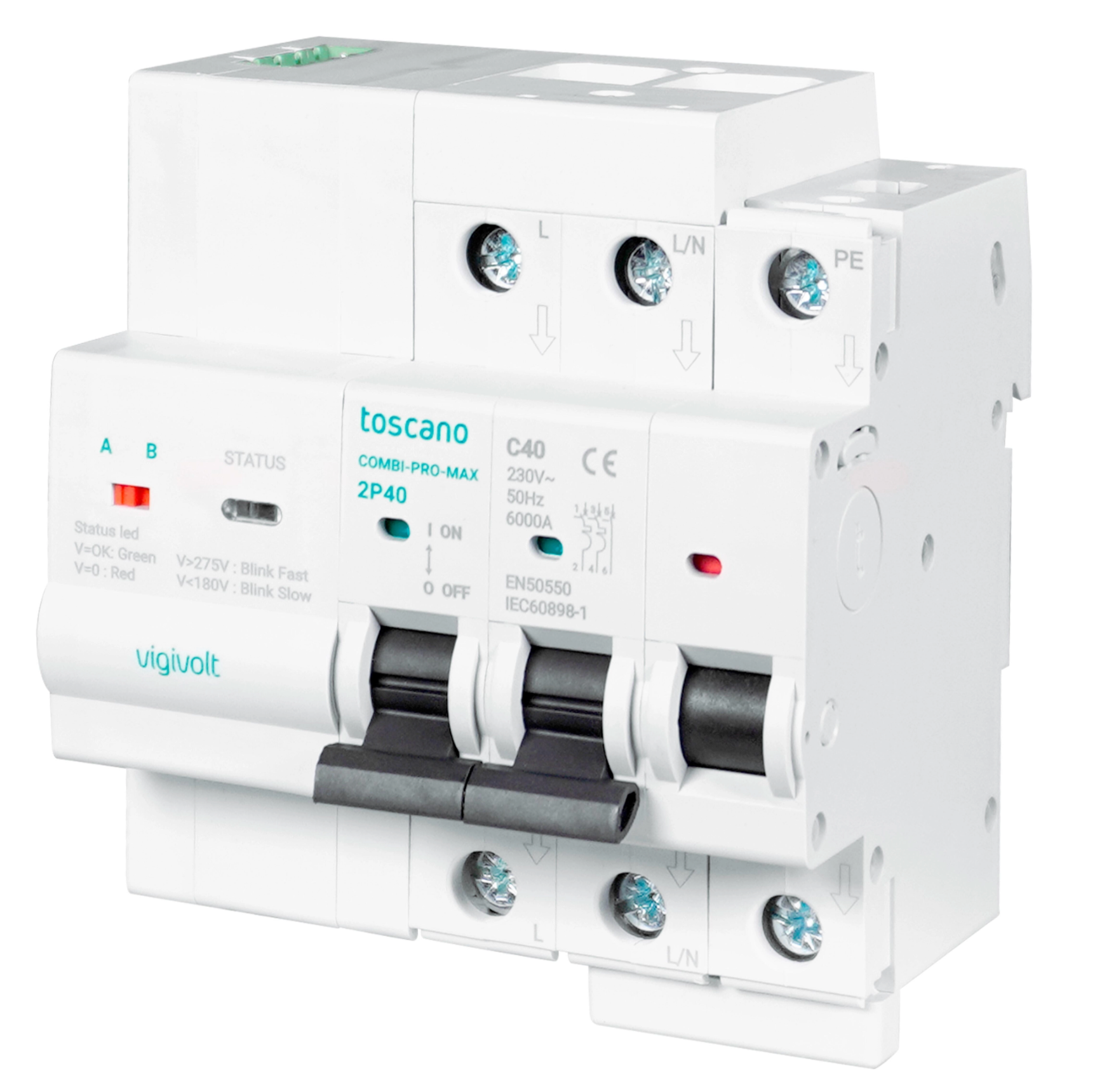

The COMBI-PRO-MAX 2P 40 A is a compact control and protection device for single-phase solar systems, enabling automatic backup switching. It detects power outages or overvoltages and activates island mode within seconds. An automatic re-engagement occurs once the grid stabilizes. Equipped with LED indicators and a manual switch, it ensures reliable backup operation. Ready for dispatch within 24 hours after payment.
Technical Specifications
- Rated Current: 40 A (two poles, C-characteristic, 6 kA breaking capacity)
- Response Time on Grid Loss: approx. 2 seconds
- Automatic Reset: after approx. 180 seconds of grid stability
- Protection Mechanisms: Magnetic-thermal protection against short circuit and overvoltage, automatic reconnection after voltage drop or surge
- Mounting & Design: DIN rail (DIN35), occupies ~5 modules, IP20, operating temperature –10 °C to +70 °C
- Controls: Status LED for operation, manual switch for intentional island mode (e.g., maintenance)
- Power Consumption: Very low, approx. 0.3 VA
Product Details
- Model: COMBI-PRO-MAX 2P 40 A
- Product Type: Control and protection device for island/backup mode
- Material: Compact housing for DIN rail mounting (DIN35)
- Weight: Not specified
- Origin: Toscano – made for solar backup solutions
-
Key Benefits:
- Fast switching during power outages
- Automatic return to grid mode after stabilization
- Easy maintenance via manual mode
- Reliable protection against grid fluctuations
