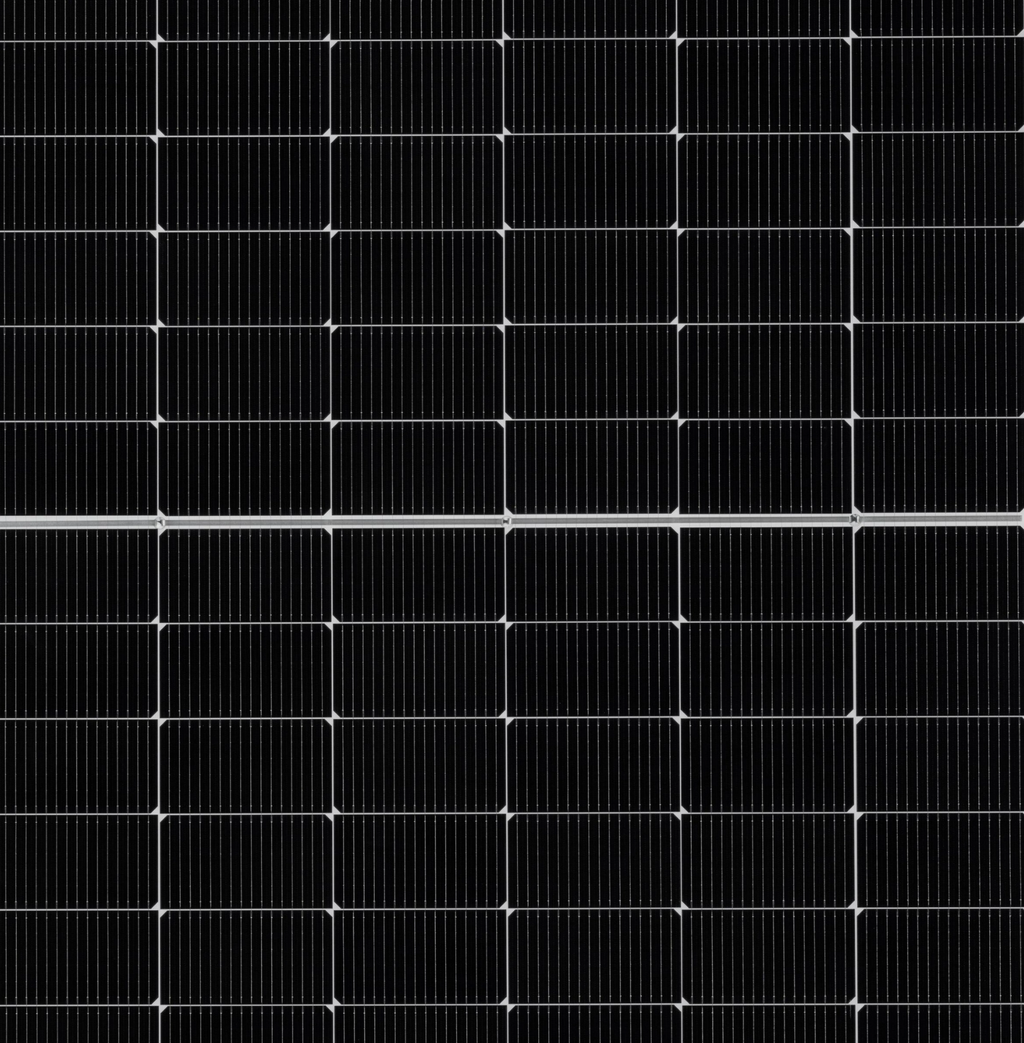

High-performance 595 W Helionix solar module from the "DeepBlue 4.0" series with N-Type TopCon cells and double glass coverage. The half-cell technology with 16 busbars ensures high efficiency, low shading, and maximum energy yield – including from the rear side. Ideal for sustainable photovoltaic systems with maximum output performance.
Ready for shipment within 24 hours after payment.
⚙ Technical Specifications
- N-Type Mono-PERC half-cells (144 cells, 16 busbars, TopCon)
- Bifacial glass-glass design with dual-sided power generation
- Dimensions: approx. 2278 × 1134 × 30 mm
- Weight: approx. 31.8 kg
- Max. system voltage: 1500 V DC
- Connection: MC4-EVO2 connector, protection class IP68
- Load capacity: Front up to 5400 Pa · Rear up to 2400 Pa
- Warranty: 12-year product warranty · 30-year linear performance warranty
Product Details
- Product Type: Helionix high-performance PV module (glass/glass)
- Material: N-Type silicon, double glass, aluminum frame
- Weight: approx. 31.8 kg
- Origin: China
-
Key Benefits:
– Very high module efficiency and energy yield
– Durable glass-glass construction
– Low degradation and high stability
