Modular high-voltage storage module (LiFePO₄) with 2.56 kWh capacity – ideal for scalable PV expansions. Each HVS module can be easily connected in series with up to five units (up to 12.8 kWh) and up to three of these units in parallel (max. 38.4 kWh). Compatible with leading on-grid and hybrid inverters. Safe, efficient, and low-maintenance. Weight: approx. 38 kg per module. Ready for shipment within 24 hours after payment receipt.
Technical Specifications
-
Nominal Voltage: 102.4 V
-
Nominal Capacity: 2.56 kWh
-
Round-Trip Efficiency: ≥ 96 %
-
Modularity:
-
Series connection: 2 to 5 modules (5.12 – 12.8 kWh total)
-
Parallel operation: up to 3 “towers” (38.4 kWh) possible
-
-
Max. Output Current per Module: 25 A continuous, 50 A peak (5 s)
-
Dimensions (L×W×H): approx. 585 × 298 × 233 mm
-
Protection Class: IP55 – suitable for indoor and protected outdoor use
-
Warranty & Lifespan: 10-year warranty at 90 % DoD (Depth of Discharge), over 6,000 charge cycles
Product Detail Block
-

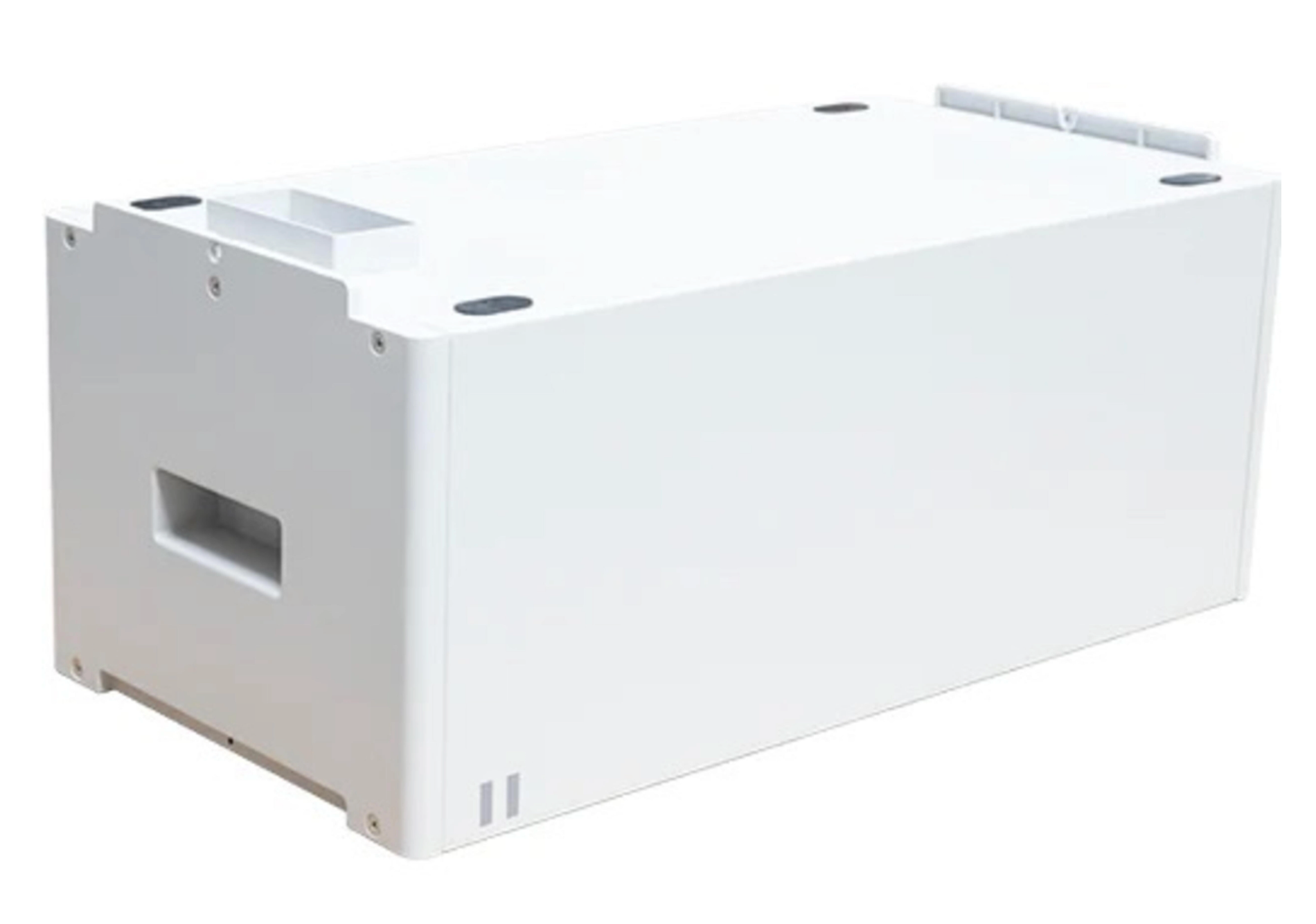

Model: Battery-Box Premium HVS – 2.56 kWh Module
-
Product Type: High-Voltage Lithium-Ion Storage (Module)
-
Material & Weight: Robust housing, approx. 38 kg net
-
Origin: BYD – one of the leading manufacturers of energy storage solutions
-
Special Advantages:
– Easy scalability (series and parallel)
– High efficiency and safety through LiFePO₄ technology
– IP55 class for flexible installation locations
– Long-term investment thanks to 10-year warranty and high cycle durability
