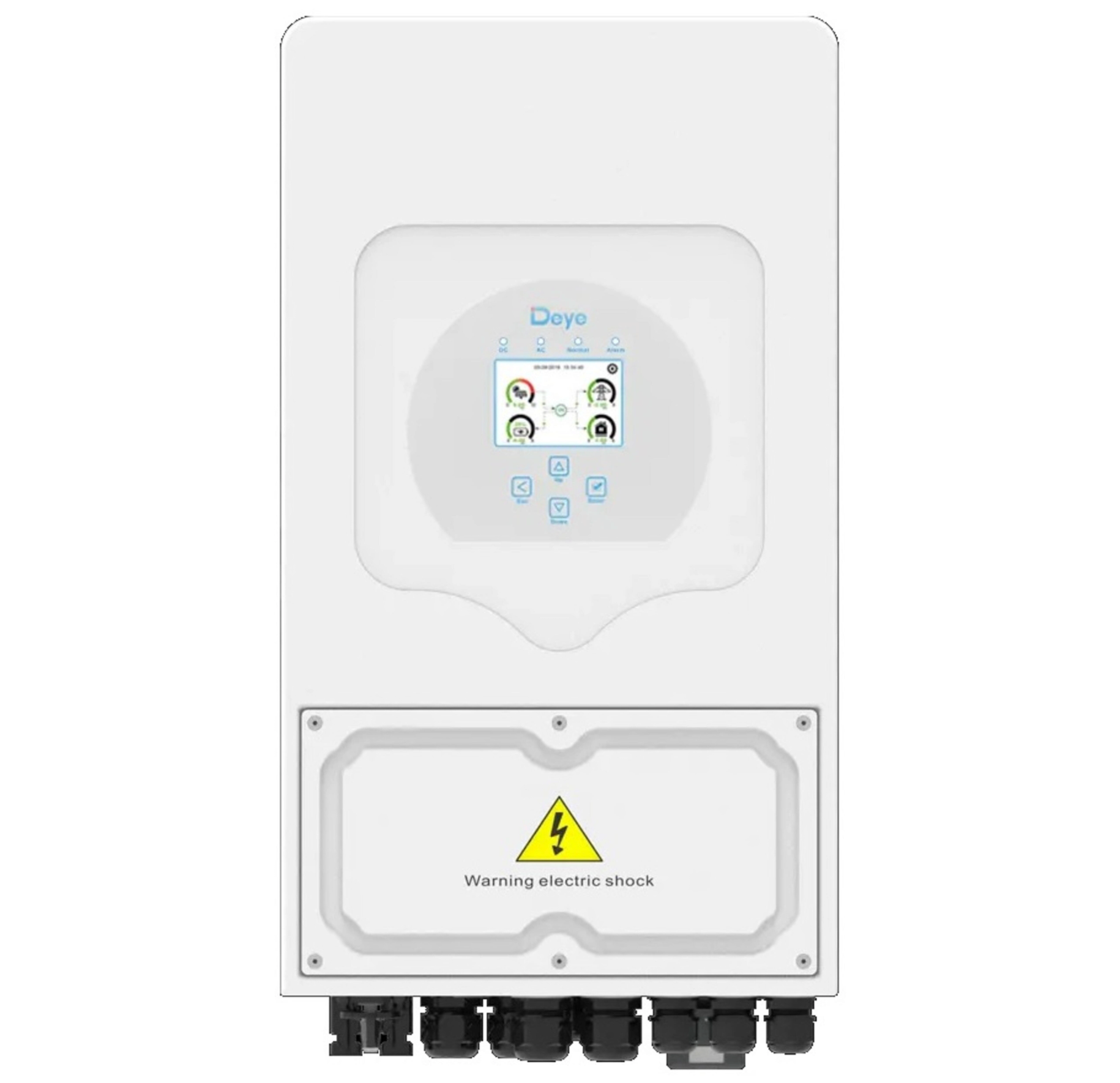

State-of-the-art 6 kW single-phase hybrid inverter with integrated energy management, ideal for grid-tied photovoltaic systems with storage or generator connection. Offers high charge/discharge flexibility, parallel capability, touch-LCD, intelligent control, and maximum flexibility for system integration. Ready for shipment within 24 hours after receipt of payment.
Technical Specifications:
-
Battery Input:
-
Supports Lead-Acid & Lithium-Ion, voltage approx. 40–60 V
-
Max. charge/discharge current: approx. 135 A
-
Intelligent charging profile with self-adjustment to BMS
-
-
PV Input:
-
Max. DC power: approx. 7 800 W
-
Rated voltage: approx. 370 V (125–500 V), start at approx. 125 V
-

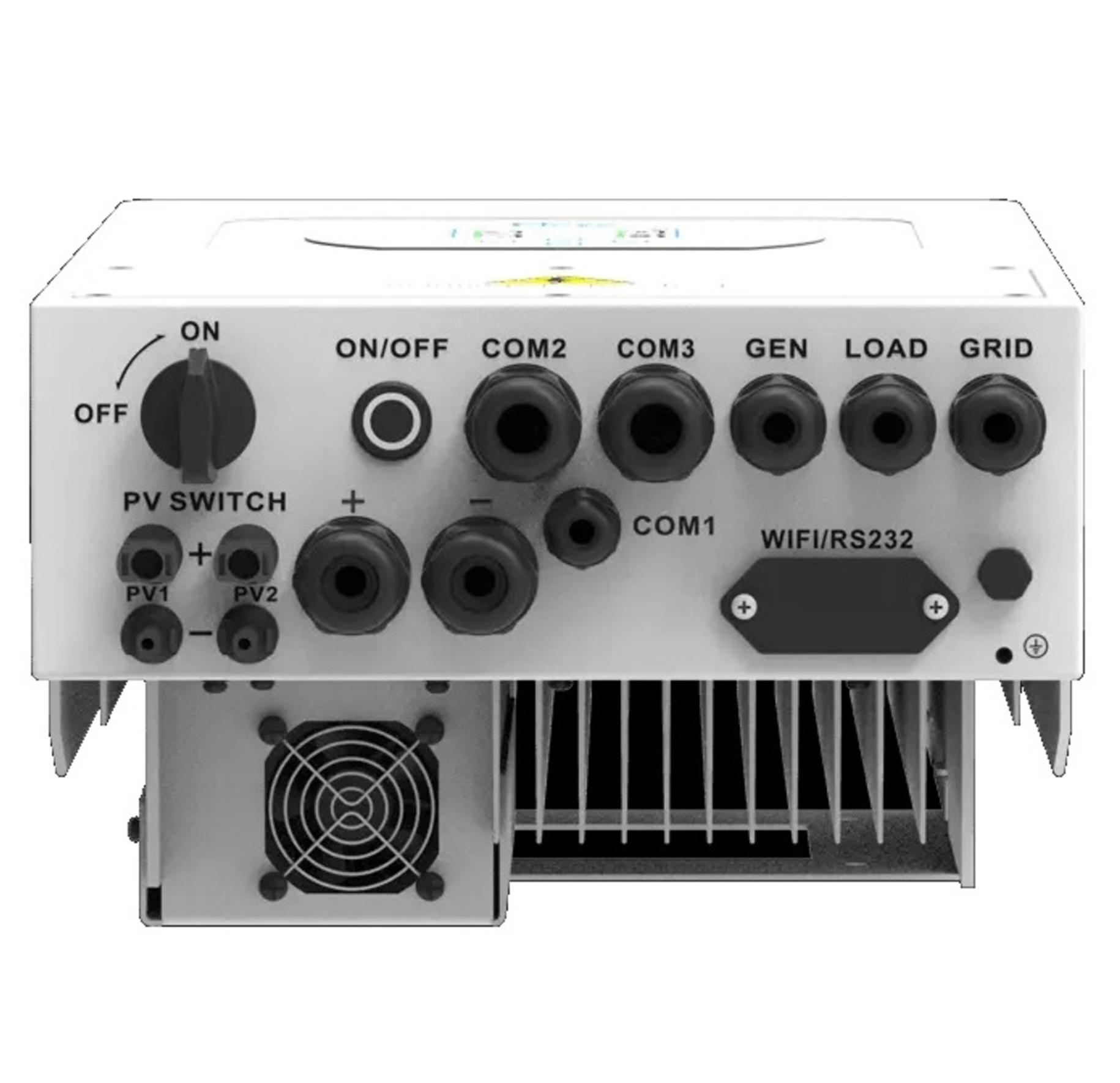

2 MPPT inputs, 1 string each
-
-
AC Output:
-
Rated power: 6 000 W, peak up to 6 600 W
-
Output current: approx. 27.3 A; max. 30 A
-
Supports load-through up to 40 A, Power Factor: 0.8 (leading/lagging)
-
-
Efficiency:
-
Max: approx. 97.6 %; European efficiency approx. 96.5 %; MPPT efficiency up to 99.9 %
-
-
Functions & Protection:
-
Touch-LCD display, IP65 weatherproof
-
Up to 16 devices in parallel for larger systems
-
Supports AC coupling, generator integration, multiple programmable charge cycles
-
Comprehensive safety: lightning protection, anti-islanding, short-circuit, overcurrent and overvoltage protection (DC Type II / AC Type III), insulation test, RCD/RC, reverse current control
-
-
General Data:
-
Communication: RS485, CAN; LCD control
-
Cooling: Intelligent ventilation system, low noise (< 30 dB)
-
Dimensions: approx. 330 × 580 × 232 mm; Weight approx. 20.5 kg
-
Temperature Range: –40 °C to +60 °C
-
Warranty: typically 5 years
-
