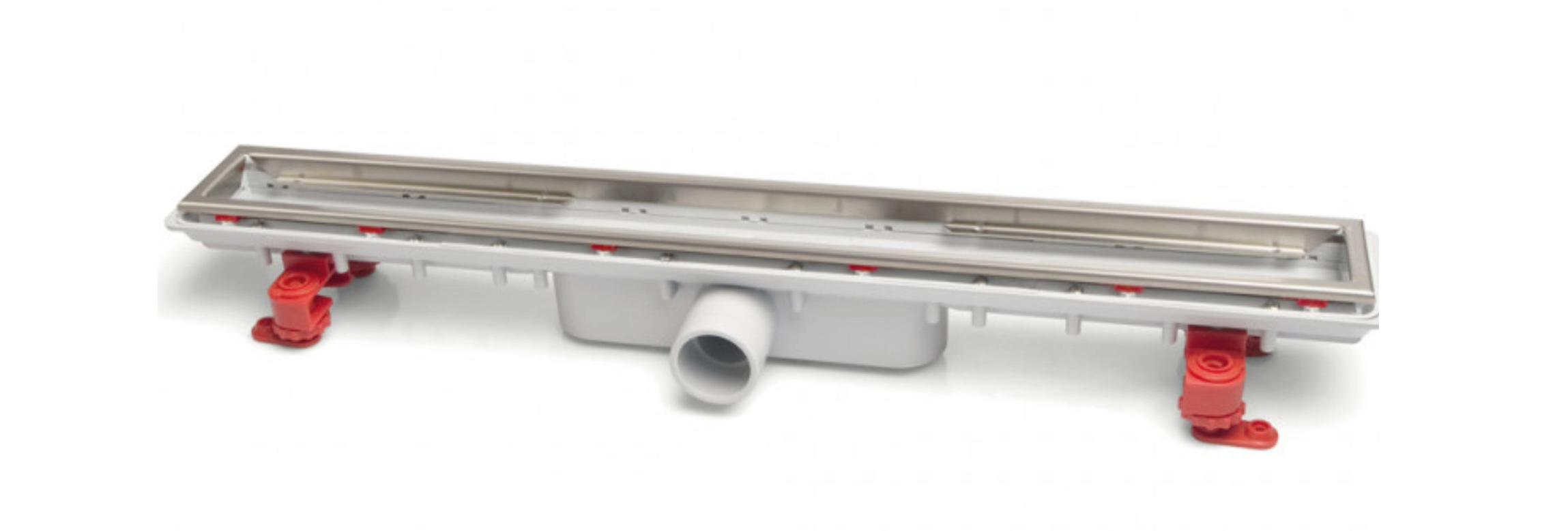

The complete shower channel set from JIMTEN includes a 65 cm long floor drain with integrated siphon (odor trap) and a geotextile sealing mat (2 × 1.5 m). The ideal solution for level-access showers with reliable drainage and standard-compliant waterproofing. Its low installation height also makes it suitable for renovations.
Drain body with low build height for level-access showers made of ABS, with internal slope and integrated siphon to facilitate water flow.
30 mm water trap with ventilation valve to prevent odors.
Removable siphon for easy maintenance.
Mechanical fixing ring for securing the sealing membrane with screws.
Adjustable supports and mounting system included.
Sealing membrane made of PE textile, 2 × 1.5 m, included.
High flow rate (up to 0.8 l/s).

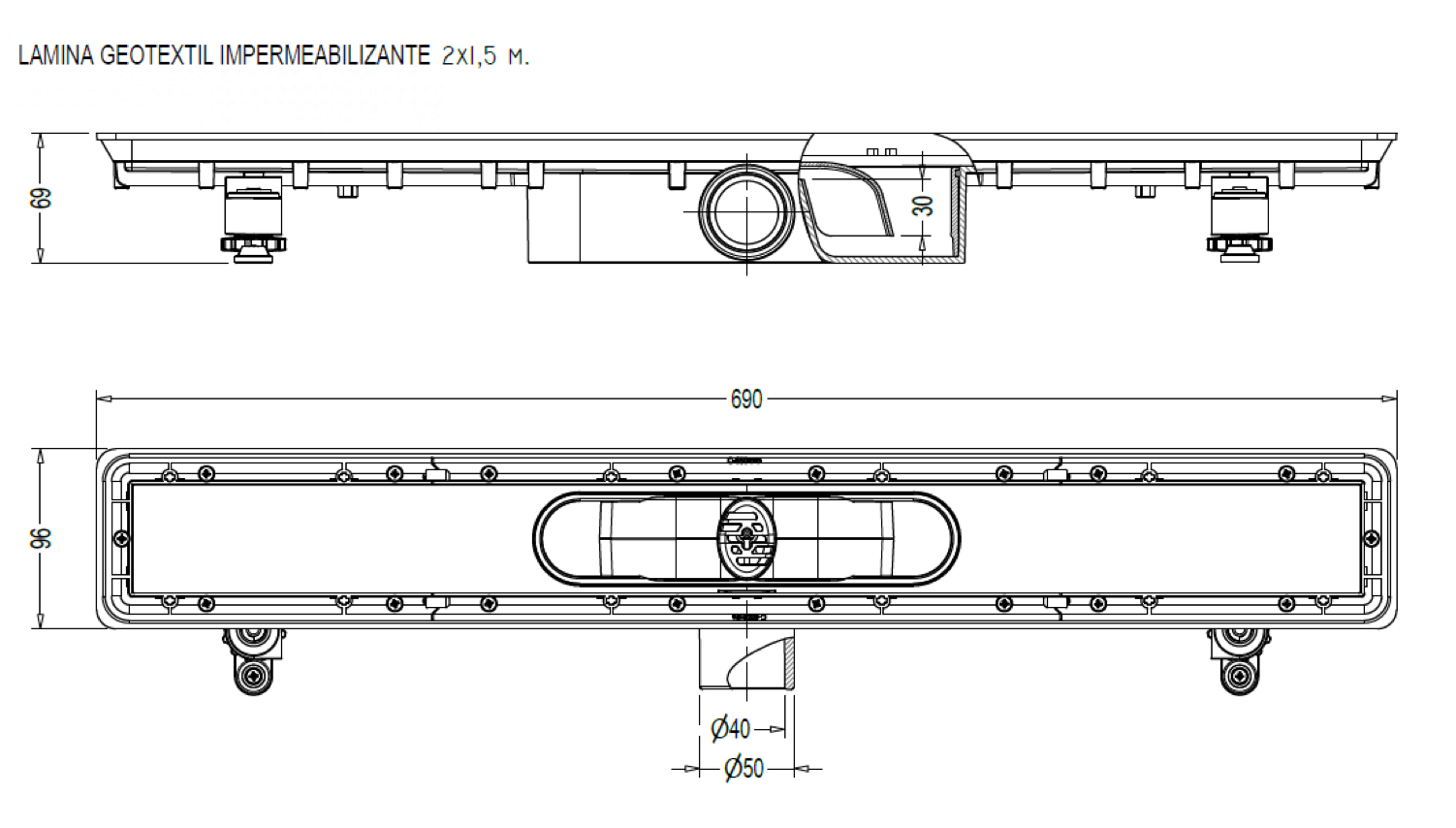

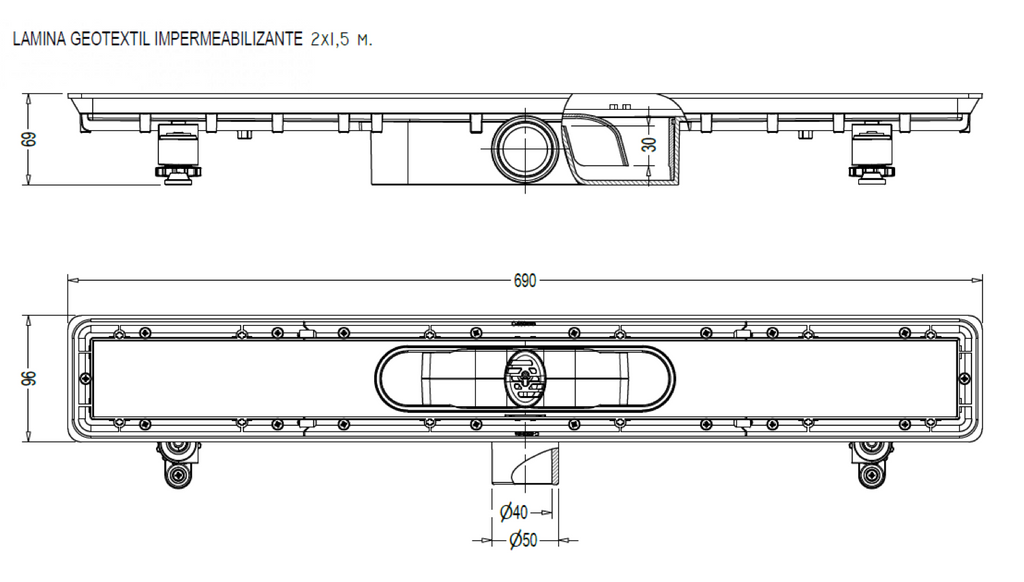

⚙ Technical Specifications:
-
Length: 65 cm
-
Flow Rate: Up to 0.8 l/s
-
Material (Drain Body): ABS
-
Sealing Membrane: PE textile, 2 × 1.5 m
-
Water Trap Height: 30 mm with ventilation valve
-
Siphon: Removable
-
Installation: Adjustable supports and fixing system included
-
Brand: JIMTEN
Product Detail Block:
-
Model: JIMTEN Floor Drain Complete Set
-
Product Type: Floor shower channel with integrated siphon and sealing mat
-
Material: ABS drain body, PE textile sealing membrane
-
Special Advantages:
– Low-profile floor drain suitable for renovations
– Integrated siphon with odor trap and removable for maintenance
– High flow rate for efficient drainage
– Includes sealing membrane and mounting system
