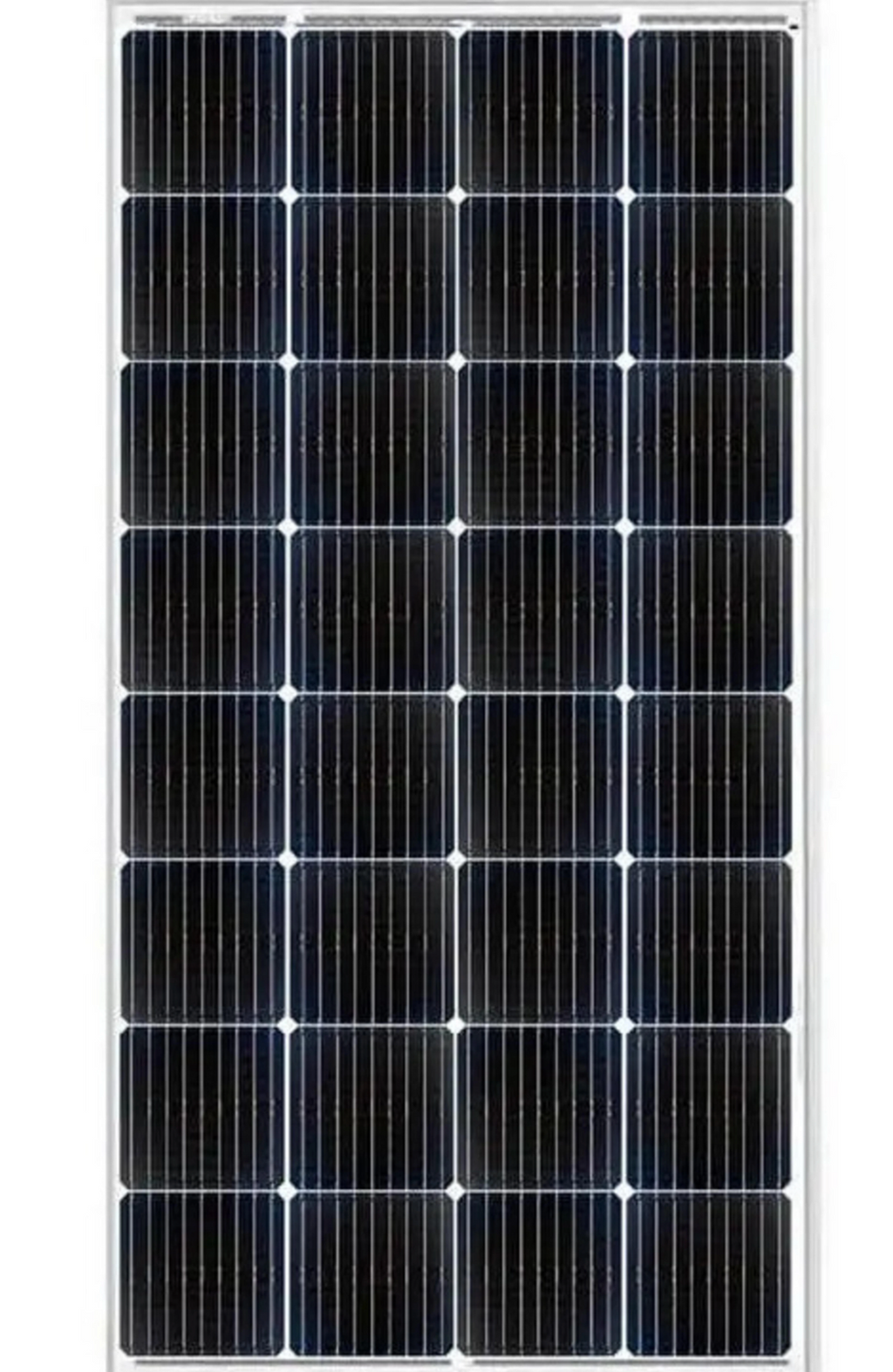

Eleksol monocrystalline solar module – 200 W, 12 V

Efficient 200 W Monocrystalline Solar Module from Eleksol (Model JX166‑32M) – compact, lightweight, and powerful. Ideal for motorhomes, boats, or small PV systems. Maximum output even in low light conditions.
Ready to ship within 24 hours after payment.

Technical Specifications

• Power: 200 W (Nominal)

• Voltage at MPP (Vmp): 18 V

• Current at MPP (Imp): 11.11 A

• Short-Circuit Current (Isc): 11.89 A

• Open-Circuit Voltage (Voc): 21.78 V

• Number of Cells: 32 (4 × 8 cubic cells, 166 mm)

• Efficiency: up to 20.56 %

• Dimensions: 1380 × 705 × 30 mm

• Weight: approx. 10.5 kg

• Frame: Aluminum alloy, anodized

• Warranty: 12 years on product, 25 years on ≥ 80 % output

• Load Capacity: Snow up to 5400 Pa, Wind up to 2400 Pa

Product Details

• Model: HelioTech Solar Module – 200 W, 12 V

• Product Type: Compact PV module for mobile applications

• Material: Monocrystalline silicon, aluminum frame

• Weight: approx. 10.5 kg

• Origin: Spain

• Special Advantages:
  – High efficiency in a compact format
  – Lightweight and portable – ideal for campers, boats, or PV systems with limited space
  – Durable and robust against adverse weather conditions
