Transformerless, single-phase 5 kW device for residential PV applications. Equipped with SnapINverter mounting system for easy installation, SuperFlex design for flexible system adaptation, and comprehensive communication features (Wi-Fi, Ethernet, Modbus, web-enabled platform). Ideal for modern households focused on efficiency, monitoring, and future-proofing. Ready for shipment within 24 hours after receipt of payment.
Technical Specifications:
-
MPP Tracker: 2 independent trackers
-
DC Input:
-
Max. input voltage: 1000 V (typical 600 V)
-
Voltage: 80 – 1000 V, MPP: 240 – 800 V
-
Max. PV power: 7.5 kWp
-
-
AC Output:
-
Rated power: 5000 W / 5000 VA; Current: 21.7 A at 230 V
-
Voltage: 1~, 220–230 V; Frequency: 50/60 Hz; THD < 3 %
-
-
Efficiency:
-
Max: 98.1 %; EU efficiency approx. 97.1 %
-
-
Dimensions & Weight:
-
H × W × D: 642.5 × 432.5 × 205.5 mm
-
Weight: approx. 19.25 kg net
-
-
Cooling & Protection:
-
Active (regulated air) cooling, IP65, Protection class 1
-
-
Environment & Operation:
-
Operating temperature –40 °C to +55 °C; Humidity 0–100 %; Altitude up to 4 000 m
-
-
Communication Interfaces:
-
Wi-Fi, Ethernet, Modbus TCP/RTU (SunSpec), Solar.web platform, USB, RS422, energy management I/Os
-
Installation & Design:
-
SnapINverter quick-mount for easy maintenance, SuperFlex for flexible system configurations
-
Product Detail Block:
-

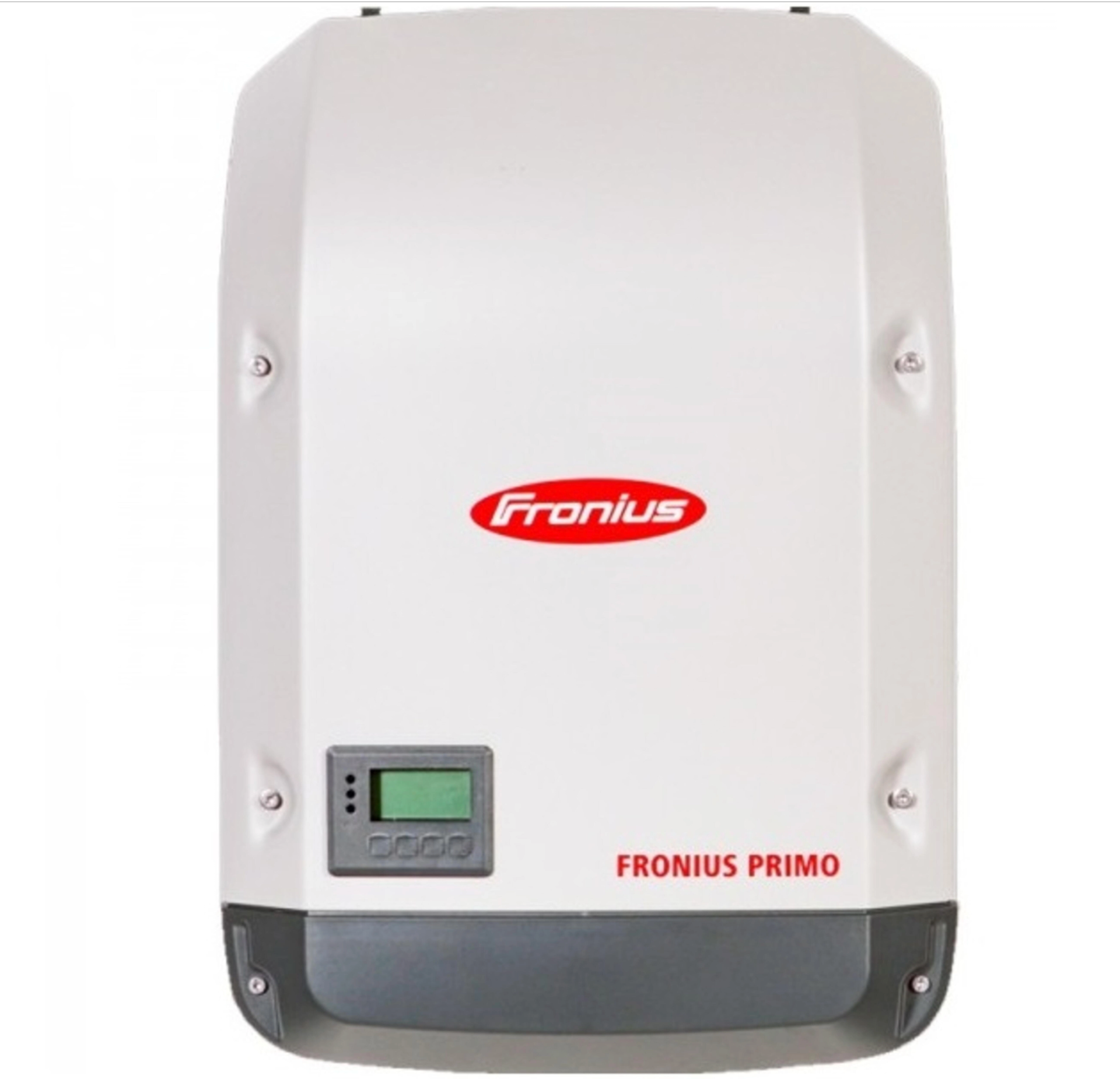

Model: Primo 5.0-1
-
Product Type: Single-phase on-grid inverter (SnapINverter)
-
Protection & Cooling: IP65, active cooling, transformerless
-
Weight: approx. 19.25 kg net
-
Origin: Fronius – renowned manufacturer in solar energy
-
Special Advantages:
– Simple installation and service-friendly
– Maximum flexibility in system design
– Integrated monitoring with future-proof interfaces
– High efficiency and long durability
