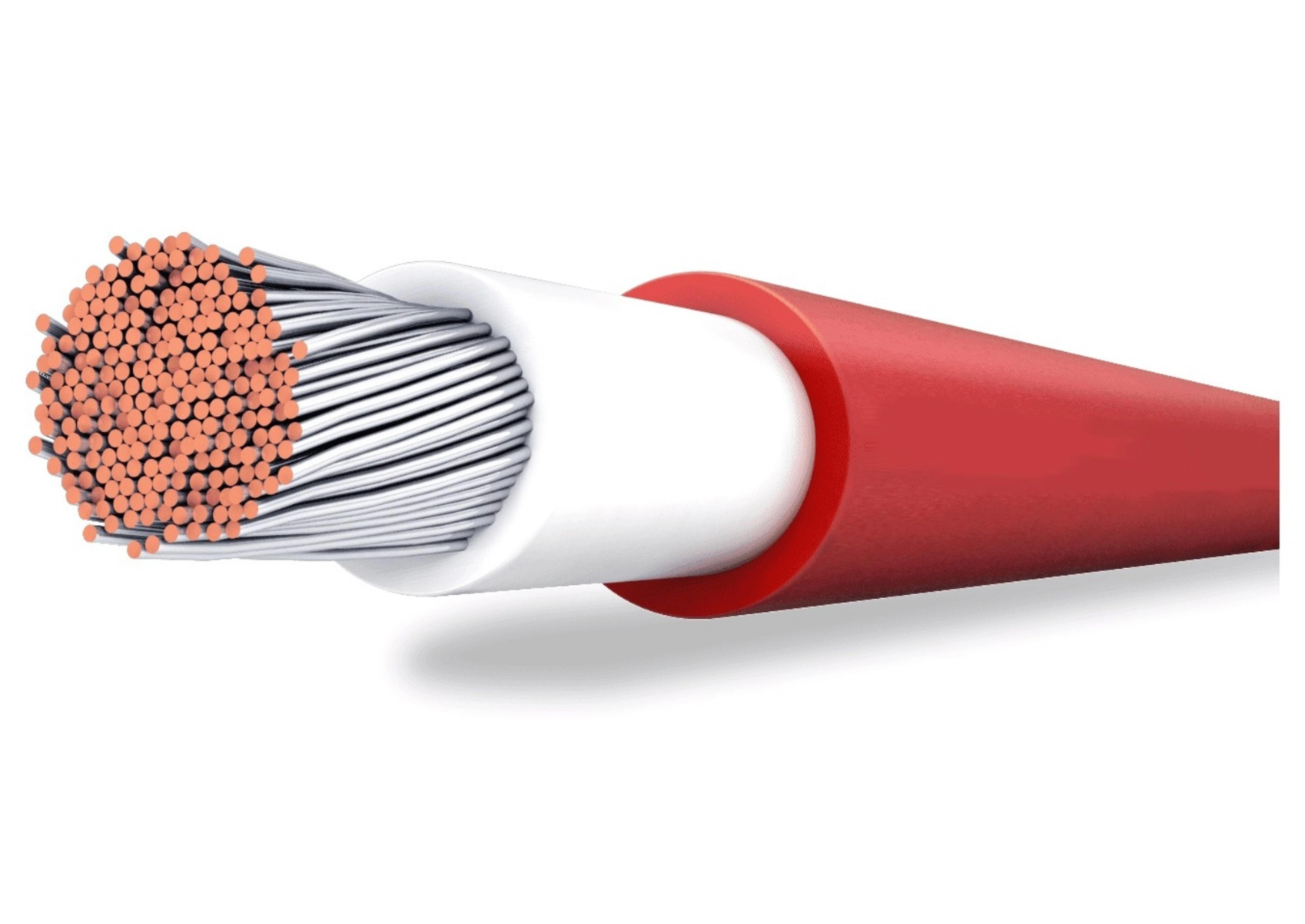

Robust, halogen-free solar connection cable of type H1Z2Z2-K with a large conductor cross-section of 16 mm² and red sheathing. The double XLPE insulation provides excellent protection against UV radiation, mechanical stress, and weather influences. Suitable for high voltage up to 1500 V DC – ideal for powerful and durable photovoltaic installations. Ready for shipping within 24 hours after payment receipt.
⚙ Technical Specifications
-
Dimensions: Supplied per meter (16 mm² cross-section)
-
Material: Flexible, tinned copper strand (Class 5) with double XLPE insulation
-
Color: Red
-
Weight: approx. 0.177 kg per meter (corresponds to 177 kg/km according to manufacturer)
-
Use: Connection between solar modules, inverters, and other PV components – particularly suitable for outdoor use
-
Features: Halogen-free, UV- and weather-resistant, certified according to EN 50618 / IEC 62930, suitable for high operating voltages up to 1500 V DC
Product Detail Block
Model: H1Z2Z2-K 16 mm² – per meter (red)
Product type: Halogen-free PV connection cable
Material: Tinned copper conductor with double XLPE insulation
Weight: approx. 0.177 kg per meter
Origin: Not specified
Special advantages: Certified, durable, flexible, suitable for high-voltage DC applications
