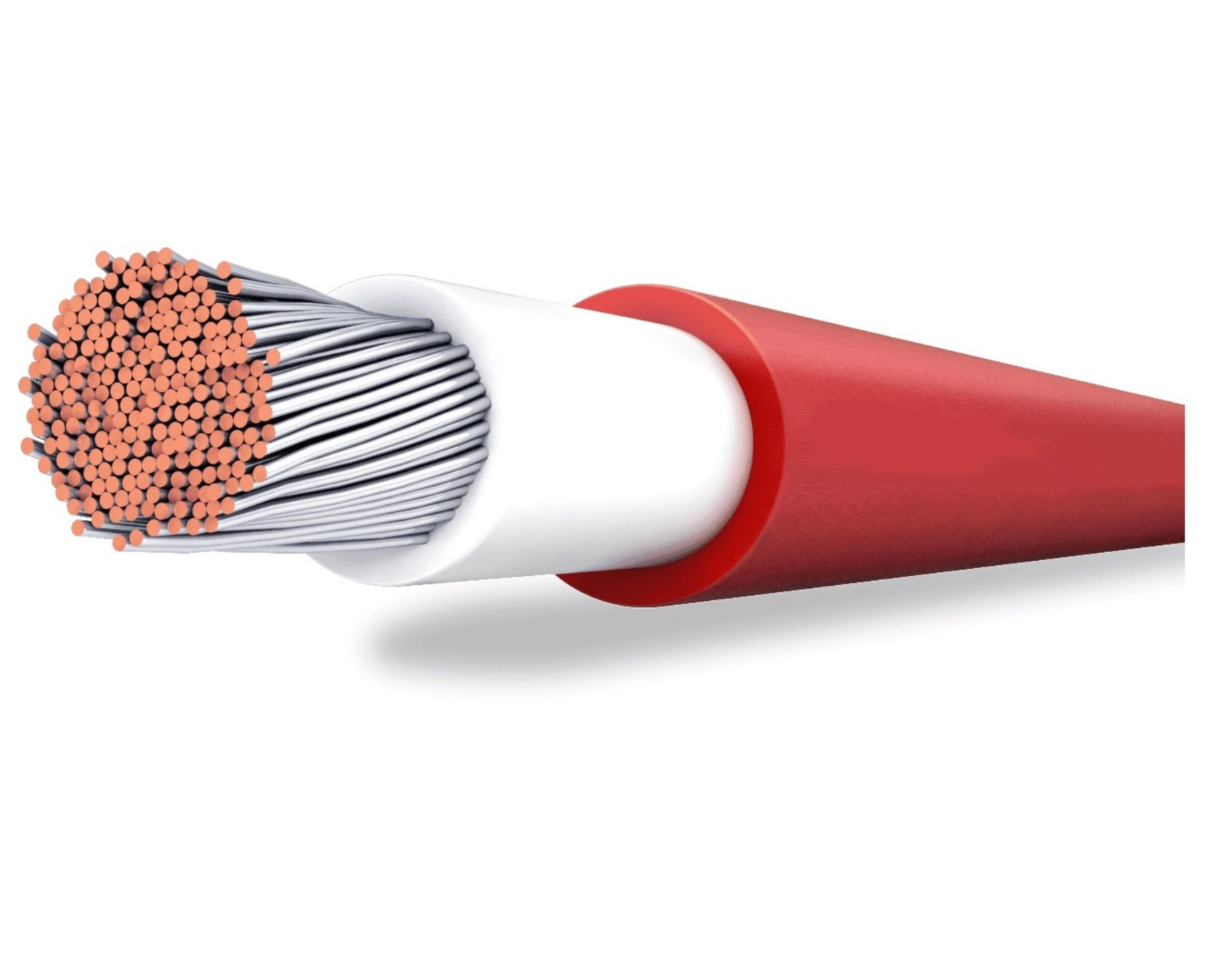

Flexible, halogen-free solar connection cable H1Z2Z2-K with 4 mm² cross-section – ideally suited for photovoltaic installations. The flexible, tinned copper conductor (Class 5) is double-protected by an XLPE sheath (EN 50618-compliant), providing excellent UV, weather, and fire resistance characteristics. Equipped with a rated voltage of up to 1500 V DC, it ensures reliable, long-term connections. Ready for shipping within 24 hours after payment is received.
Technical Properties
-
Dimensions: Supplied per meter, cross-section 4 mm²
-
Material: Fine-stranded, tinned copper conductor (Class 5), double XLPE double sheath
-
Color / Surface: Red
-
Weight: approx. 0.055 kg/m (equivalent to 55 kg/km) – data according to Nexans reference for H1Z2Z2-K cable with 4 mm² cross-section
-
Application: Connection cable between PV modules, inverters, and other system components in outdoor areas
-
Special Features:
– Halogen-free, UV & weather-resistant, certified according to EN 50618 / IEC 62930
– Rated voltage up to 1500 V DC
– Flexible, durable, and specially designed for solar systems
Product Detail Block
-
Model: H1Z2Z2-K 4 mm² – per meter (red)
-
Product Type: Halogen-free PV connection cable
-
Material: Tinned copper conductor with XLPE double sheath
-
Weight: approx. 0.055 kg net per meter
-
Origin: Not specified
-
Special Advantages:
– Highest safety and quality standards
– Flexible and durable – ideal for harsh outdoor environments
