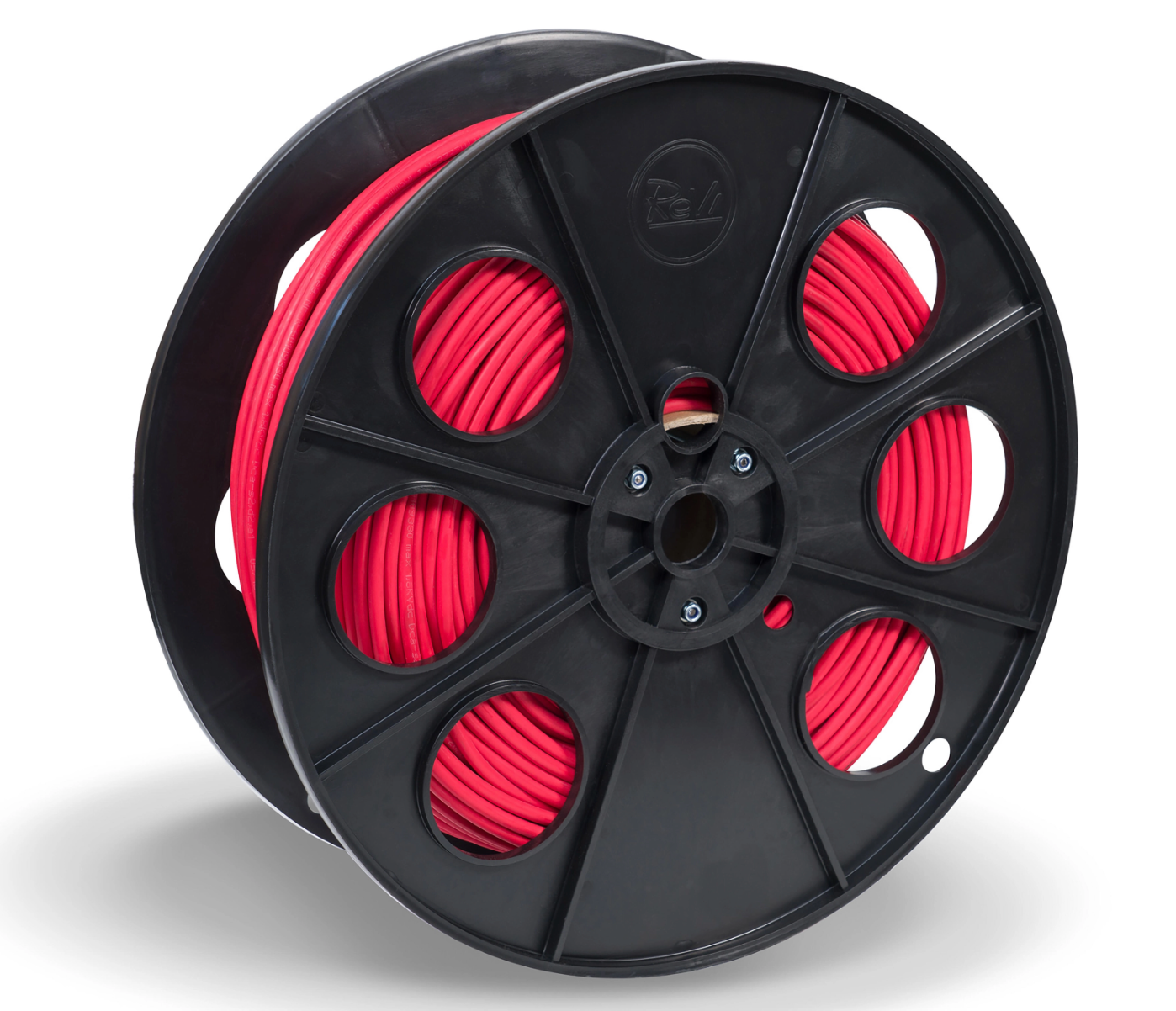

High-quality, halogen-free solar cable of type H1Z2Z2‑K with a cross-section of 6 mm² and red sheath. The double XLPE insulation provides excellent resistance to UV radiation, weather influences, and mechanical stress. Designed for high voltage up to 1500 V DC, ideal for reliable and long-lasting PV cabling. Ready for shipment within 24 hours after payment received.
Technical specifications
-
Dimensions: 100 m roll, 6 mm² cross-section
-
Material: Tinned copper conductor (Class 5), double insulated with XLPE
-
Color: Red
-
Weight: approx. 75 kg per kilometer, corresponding to 0.075 kg per meter
-
Source: Nexans and VW Cable specify the weight for 6 mm² H1Z2Z2‑K as approximately 74–80 kg/km
-
-
Use: Connection between solar modules, inverters, and system components – optimal for outdoor use
-
Special features:
-
Halogen-free, UV- and weather-resistant, certified according to EN 50618 / IEC 62930
-
Flexible, durable, suitable for high voltages (up to 1500 V DC)
-
