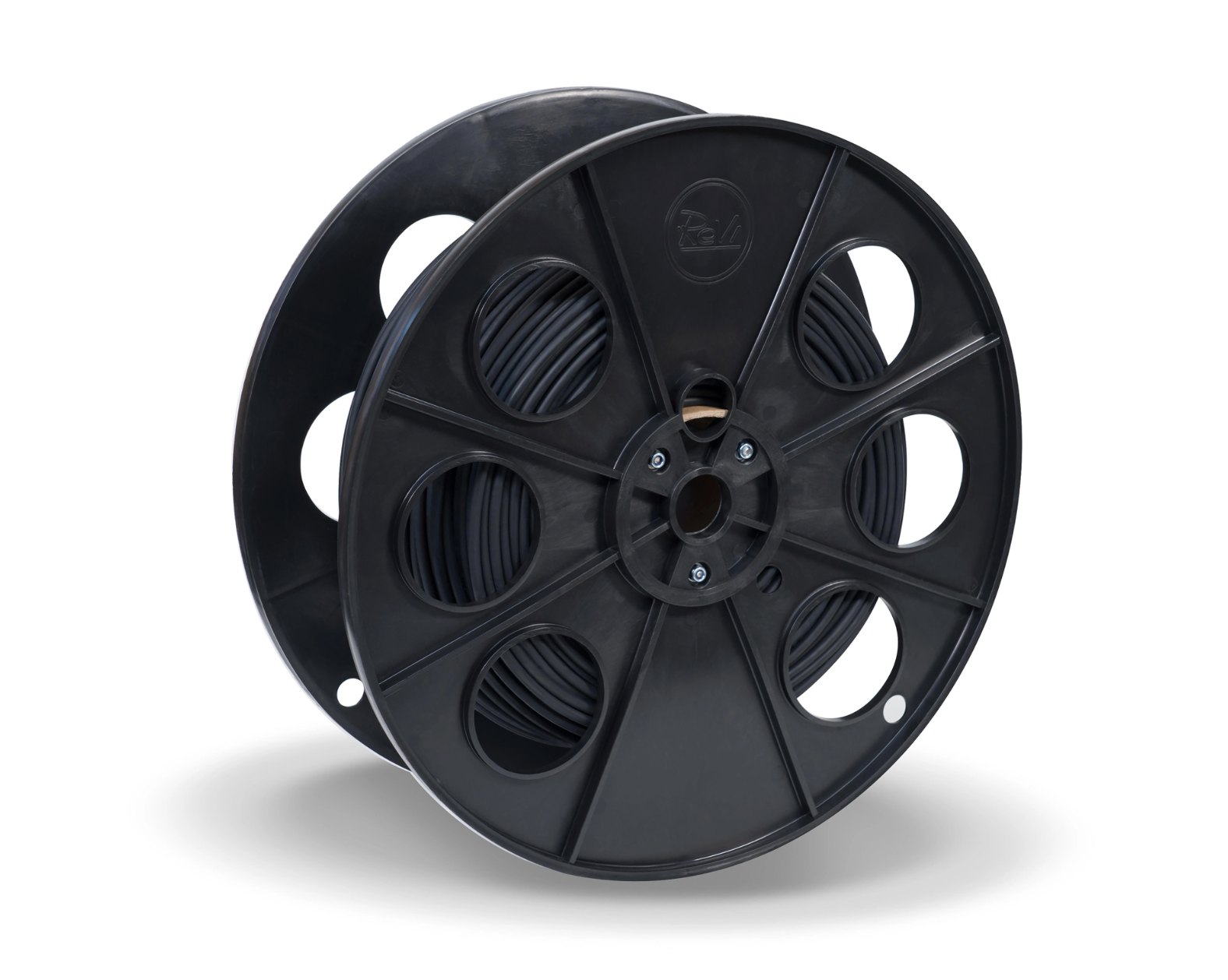

Robust, halogen-free solar cable H1Z2Z2-K with a cross-section of 6 mm² and a length of 100 m – specially designed for PV installations. With flexible strands of electrolytic, tinned copper wires (Class 5) and double insulation of cross-linked polyolefin, it offers high resistance to UV, weather, and fire (ratings: CPR Eca, IEC 60332‑1‑2). Rated up to 1500 V DC and compliant with EN 50618 – ideal as a connection cable between solar modules and inverters. Ready for shipping within 24 hours after payment.
Technical Specifications:
-
Dimensions: 100 m roll, 6 mm² cross-section
-
Material: Flexible, tinned copper conductor (Class 5), double insulation with cross-linked polyolefin (EN 50618)
-
Color / Surface: Black
-
Weight: approx. 7.85 kg per roll (according to BayWa reference)
-
Application: Electrical connection between PV modules or module to inverter – suitable for indoor and outdoor use, dry, damp, or exposed to direct sunlight
-
Special Features:
– Halogen-free and flame retardant (CPR Eca / IEC 60332‑1‑2)
– Rated up to 1500 V DC (some variants up to 1800 V DC)
– Designed for high mechanical and climatic stress
– Approved according to EN 50618:2014 for solar cables
Product Detail Block:
-
Model: H1Z2Z2-K 6 mm² – 100 m solar roll (black)
-
Product Type: Halogen-free PV solar connection cable
-
Material: Flexible tinned copper conductor, polyolefin double insulation
-
Weight: approx. 7.85 kg net per roll (reference data)
-
Origin: Not specified
-
Special Advantages:
– Highest safety standards (EN 50618, CPR Eca)
– Flexible, durable, UV- and weather-resistant
– Ideal for long-term solar installations
