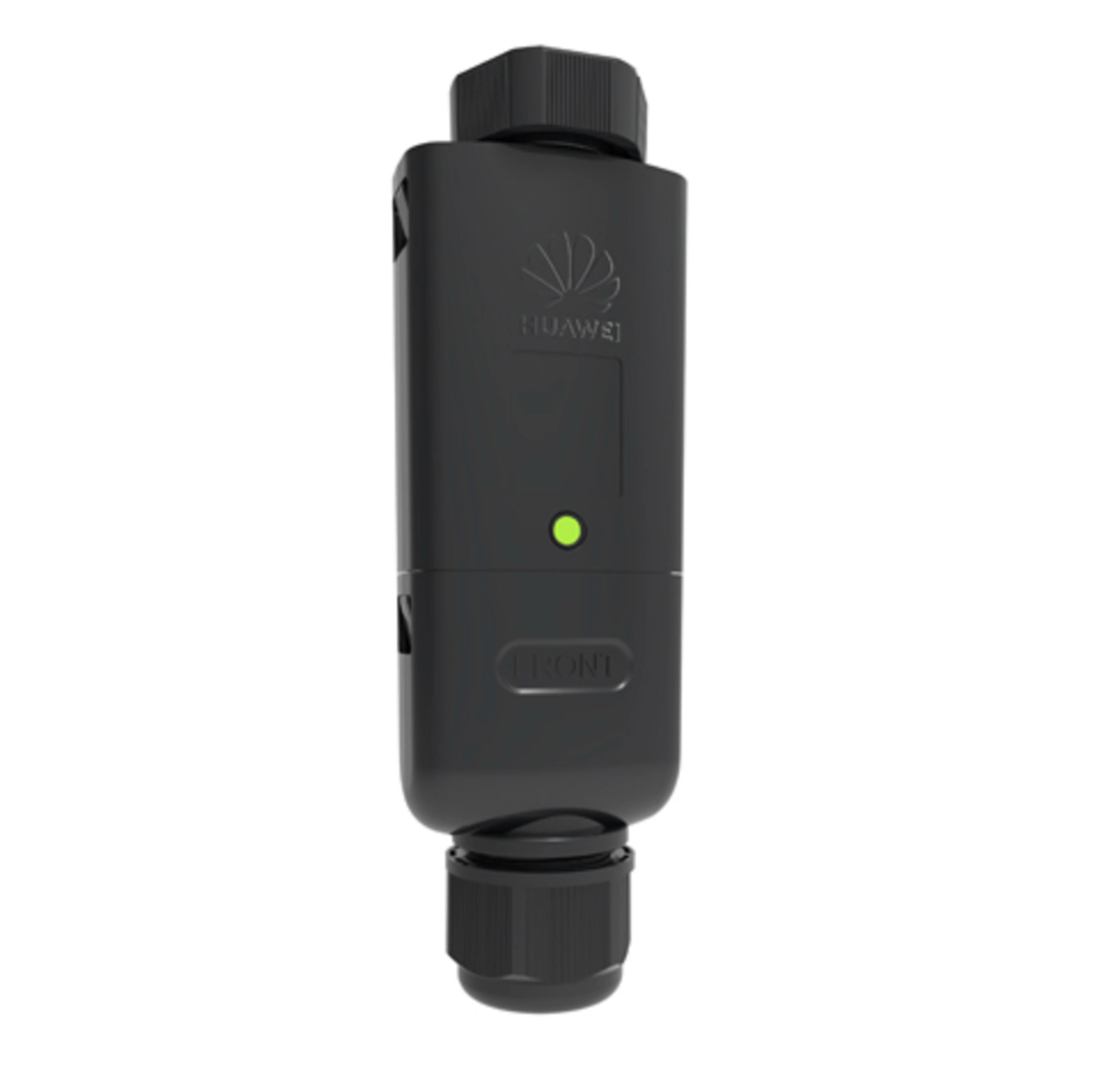

The Huawei Smart Dongle WLAN‑FE expands the communication capabilities of Huawei inverters with a simple plug-and-play USB connection. It supports both WLAN and Fast-Ethernet connections for up to 10 inverters simultaneously, enabling efficient monitoring and intelligent system management—even under harsh weather conditions thanks to its IP65-rated housing. Ready to ship within 24 hours after payment.
Technical Specifications:
- Max Supported Devices: Up to 10 inverters
- Connection: USB plug-and-play
- Network: WLAN (802.11b/g/n, 2.4 GHz) & Fast-Ethernet (10/100 Mbit/s)
- Dimensions: Approx. 146 × 48 × 33 mm
- Weight: Approx. 90 g
- Typical Power Consumption: Approx. 2.5 W
- Operating Temperature: –30 °C to +65 °C; storage: –40 °C to +70 °C; up to 4,000 m altitude
- Protection Class: IP65 – dust and jet-water resistant
- Security Protocols: WPA/WPA2 encryption, TKIP/CCMP/AES
- Function: Automatic reconnection after connection loss, supports local management systems, Huawei FusionSolar, and compatible third-party systems
Product Details:
- Model: Smart Dongle WLAN-FE
- Product Type: Communication module for inverters (WLAN & Ethernet)
- Material: Durable, weatherproof housing (IP65)
- Weight: Approx. 90 g net
- Origin: Huawei accessory via professional distributor
-
Key Advantages:
– Plug-and-play installation
– Encrypted, reliable connection for up to 10 devices
– Suitable for outdoor installation due to IP65 housing
– Enables monitoring via Huawei FusionSolar and compatible management solutions
The Huawei Smart Dongle WLAN‑FE expands the communication capabilities of Huawei inverters with a simple plug-and-play USB connection. It supports both WLAN and Fast-Ethernet connections for up to 10 inverters simultaneously, enabling efficient monitoring and intelligent system management—even under harsh weather conditions thanks to its IP65-rated housing. Ready to ship within 24 hours after payment.
Technical Specifications:
- Max Supported Devices: Up to 10 inverters
- Connection: USB plug-and-play
- Network: WLAN (802.11b/g/n, 2.4 GHz) & Fast-Ethernet (10/100 Mbit/s)
- Dimensions: Approx. 146 × 48 × 33 mm
- Weight: Approx. 90 g
- Typical Power Consumption: Approx. 2.5 W
- Operating Temperature: –30 °C to +65 °C; storage: –40 °C to +70 °C; up to 4,000 m altitude
- Protection Class: IP65 – dust and jet-water resistant
- Security Protocols: WPA/WPA2 encryption, TKIP/CCMP/AES
- Function: Automatic reconnection after connection loss, supports local management systems, Huawei FusionSolar, and compatible third-party systems
Product Details:
- Model: Smart Dongle WLAN-FE
- Product Type: Communication module for inverters (WLAN & Ethernet)
- Material: Durable, weatherproof housing (IP65)
- Weight: Approx. 90 g net
- Origin: Huawei accessory via professional distributor
-
Key Advantages:
– Plug-and-play installation
– Encrypted, reliable connection for up to 10 devices
– Suitable for outdoor installation due to IP65 housing
– Enables monitoring via Huawei FusionSolar and compatible management solutions
