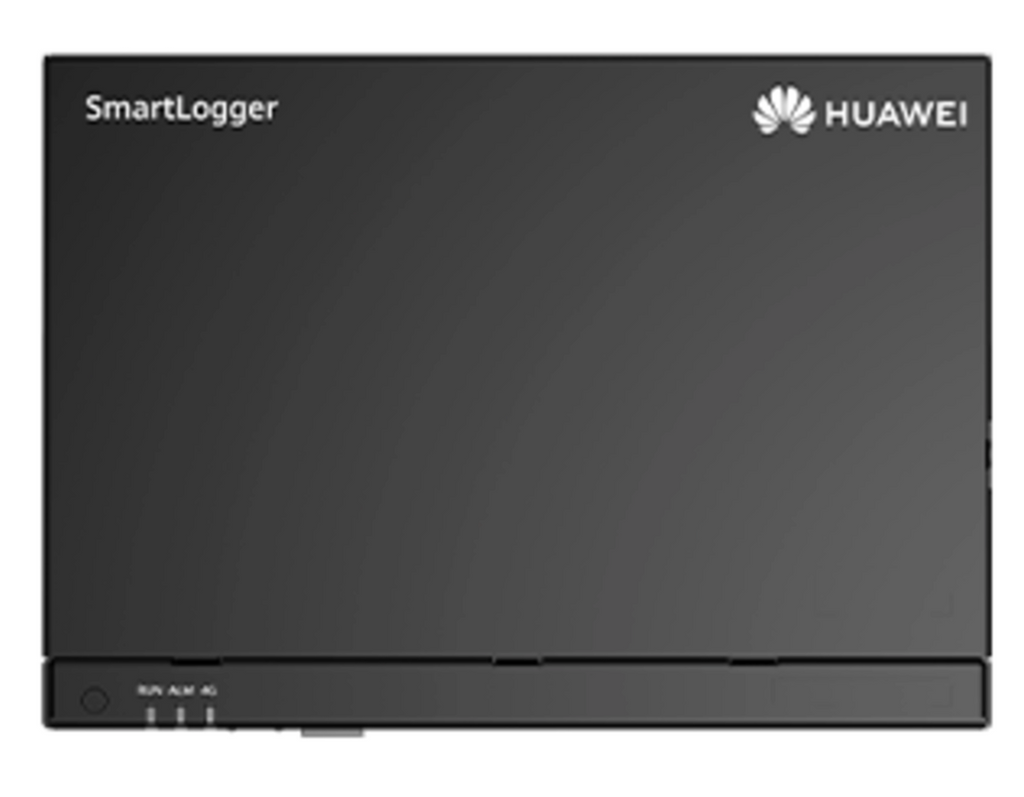

The SmartLogger3000A is a centralized data and communication hub for PV systems, integrating up to 80 inverters and additional devices via multiple interfaces. It supports Ethernet, RS‑485, optional 4G, and MBUS, offering web monitoring, zero-export control, and remote maintenance. Delivery is ready within 24 hours after payment.
Technical Specifications
- Number of Monitored Devices: Up to 80 inverters (Model A)
-
Communication Interfaces:
- WAN & LAN (1× each, 10/100/1000 Mbps)
- RS‑485 (3×, up to 1000 m range)
- MBUS (1×, optional, PLC-compatible)
- Mobile network (2G/3G/4G) via external module
- Protocols: Modbus‑TCP, IEC 60870‑5‑104, Modbus‑RTU, IEC 60870‑5‑103, DL/T645
-
I/O Function:
- 4× Digital Inputs (DI)
- 2× Digital Outputs (DO, relay, 12 V/100 mA)
- 4× Analog Inputs (AI)
- USB 2.0 port
- Interaction/Status: 3× LEDs (RUN, ALM, 4G), embedded web UI, app configuration via WLAN
-
Power Supply:
- AC: 100–240 V AC, 50/60 Hz
- DC: 12 V or 24 V DC
- Consumption: typical 8 W, max 15 W
-
Dimensions & Weight:
- Device: approx. 225 × 160 × 44 mm (without mount/antenna connector)
- Weight: approx. 2 kg
- Enclosure protection: IP20
- Mounting: wall, DIN rail, or tabletop
-
Operating Conditions:
- Temperature: –40 °C to +60 °C; storage: –40 °C to +70 °C
- Humidity: 5–95 % RH (non-condensing)
- Max. altitude: 4000 m
Product Details
- Model: SmartLogger3000A
- Product Type: Smart Monitoring & Communication Hub
- Material & Protection: Compact IP20 plastic enclosure
- Weight: approx. 2 kg
- Origin: Huawei – central control unit for PV systems
-
Key Benefits:
- Centralized data collection and device control
- Flexible communication (LAN, WAN, RS‑485, mobile, optional MBUS)
- Easy handling via web interface or app
- Supports up to 80 inverters and fast batch configurations
- Zero-export control and SPD protection integrated
