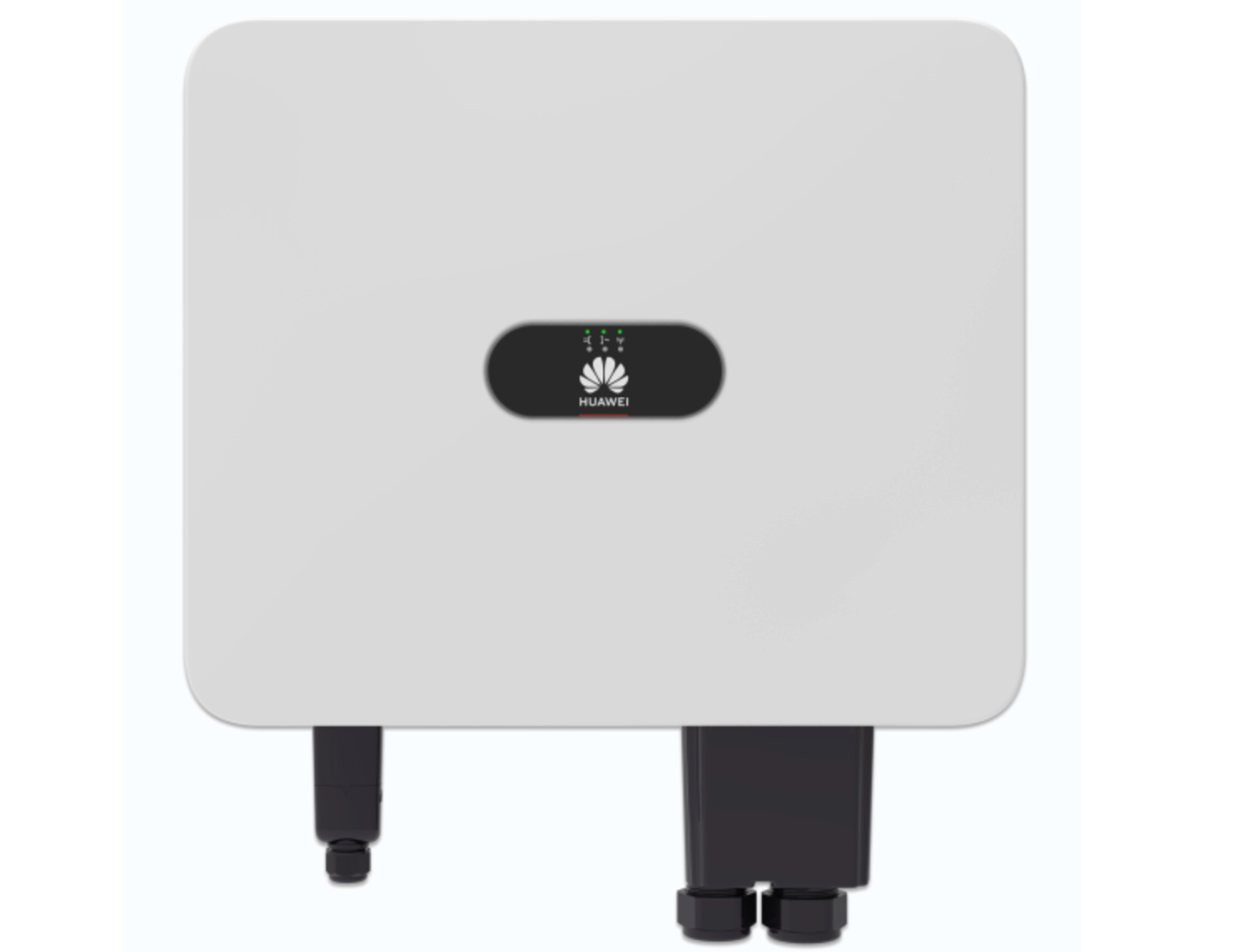

Powerful 25 kW three-phase inverter (SUN2000‑25KTL‑M5) for professional solar systems. Offers high efficiency (up to 98.4 %), intelligent arc fault detection (AFCI), PID recovery, and flexible communication options (WLAN, Ethernet, 4G). Compact in size, weatherproof, and ideal for robust on-grid installations. Ready to ship within 24 hours after payment.
Technical Specifications:
-
Rated Power: 25 kW
-
Max. Efficiency: 98.4 %; EU Efficiency: 98.2 %
-
Input:
-
Recommended Max. PV Power: 37,500 Wp Max. Input Voltage: 1,100 V
-
MPPT Voltage Range: 530–800 V (full load); Start voltage 200 V; Rated input 600 V
-
Max. Input Current per MPPT: 30 A (two strings) / 20 A (one string); Short-circuit current: 40 A; 2 MPPTs, up to 4 strings Output:
-
Grid Connection: Three-phase (3W + N + PE), 50/60 Hz
-
Max. Apparent Power: 27.5 kVA
-
Max. Output Current: up to 42 A at 380 V AC
-
Dimensions & Weight:
-
Dimensions: approx. 546 × 460 × 228 mm
-
Weight: approx. 21 kg
-
-
Protection & Functions:
-
IP Rating: IP66 – weather-protected
-
Active Safety (AFCI Arc Detection), Type-II Surge Protection, PID Recovery for module regeneration
-
Communication: WLAN, Fast Ethernet, optional 4G via dongle
-
-
Certificates & Standards:
-
Supported grid standards: G99, EN50549, VDE‑AR‑N‑4105/4110, IEC 61727, IEC 62116, etc.
-
-
Additional Benefits:
-
Compatible with Huawei Sun Optimizers for maximum performance, ideal for complex roof structures with shading and variable layouts
-
Quick commissioning via FusionSolar app and easy system integration
-
Product Details:
-
Model: SUN2000‑25KTL‑M5
-
Product Type: 3-phase on-grid string inverter (25 kW)
-
Material: Robust, weatherproof enclosure (IP66)
-
Weight: approx. 21 kg net
-
Origin: Huawei technology (distributed via specialized wholesalers)
-
Key Advantages:
– Highest energy efficiency & performance
– Advanced arc fault and surge protection
– Flexible communication & monitoring
– Robust for outdoor installation
