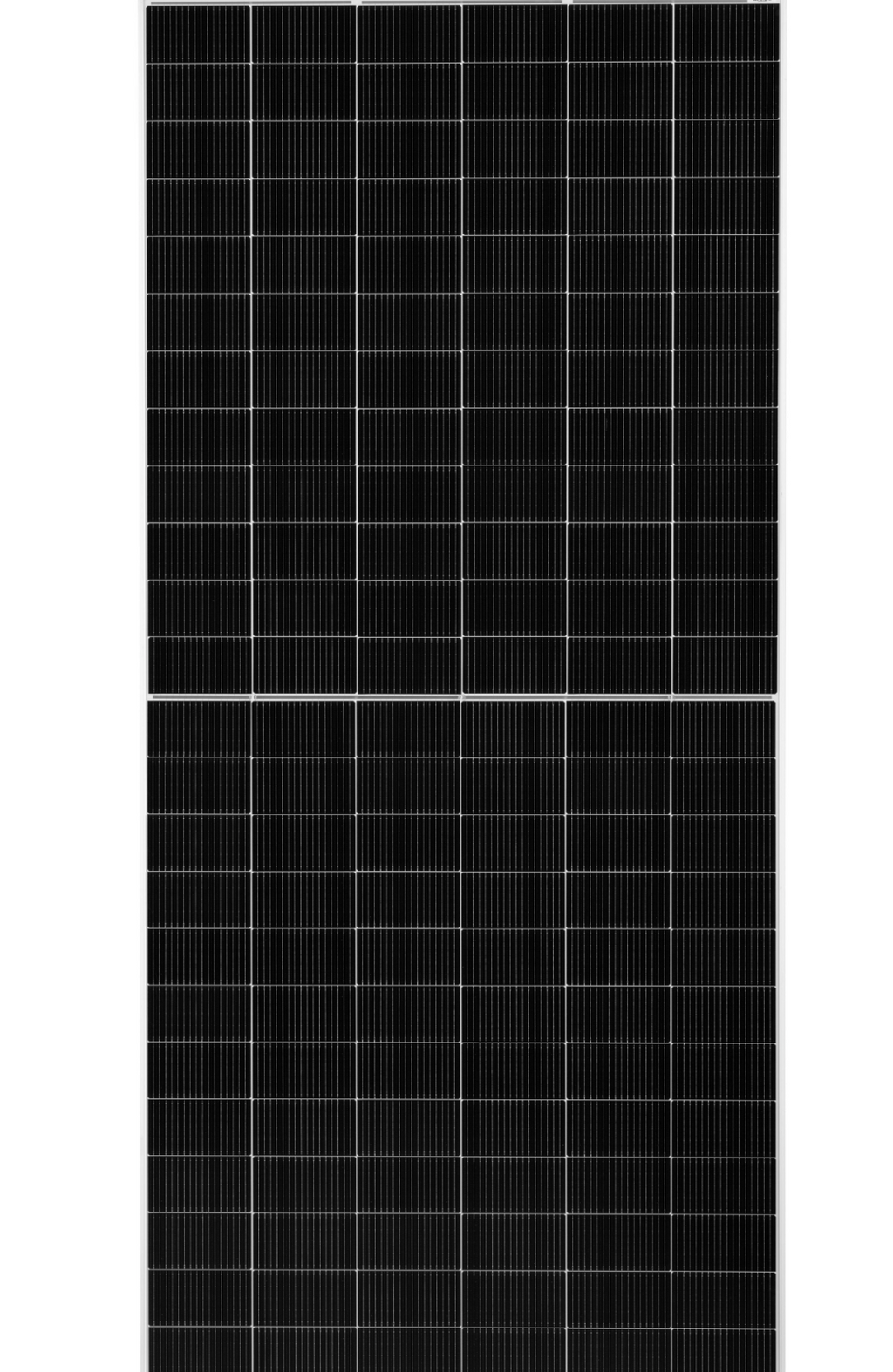

State-of-the-art 630 W bifacial solar module with N‑type TOPCon cells, double glass coverage, and 144 half-cells. The dual glass-glass construction increases reliability and mechanical stability and generates energy from both sides – ideal for maximizing yields.
Ready for shipment within 24 hours after receipt of payment.
Technical Specifications
-
Power: 630 W (Pmax)
-
Module Efficiency: approx. 22.5 %
-
Cell Configuration: 144 N‑type half-cells (TOPCon), 16 busbars
-
Dimensions: 2465 × 1134 × 35 mm
-
Weight: approx. 34.6 kg
-
Voltage & Current at MPP: Vmp ≈ 43.90 V, Imp ≈ 14.35 A
-
Short-Circuit Current (Isc): approx. 15.21 A
-
Max System Voltage: 1500 V DC
-
Connectors: MC4‑EVO2, IP68 junction box
-
Mechanical Load: Front 5400 Pa, Back 2400 Pa
-
Warranty: 12 years product, 30 years performance ≥ 87 %
-
Certifications: IEC 61215, IEC 61730, ISO 9001/14001/45001
Product Details
-
Model: LumaX – Bifacial Glass-Glass Module
-
Product Type: High-performance solar module, bifacial, half-cell based
-
Material: N‑type silicon, glass-glass, aluminum frame
-
Weight: approx. 34.6 kg
-
Origin: China (Brand: JA Solar)
-
Key Advantages:
– Optimized yield through rear-irradiated surface
– Highly durable & weather-resistant
– Strong load-bearing capacity due to robust double glass construction
