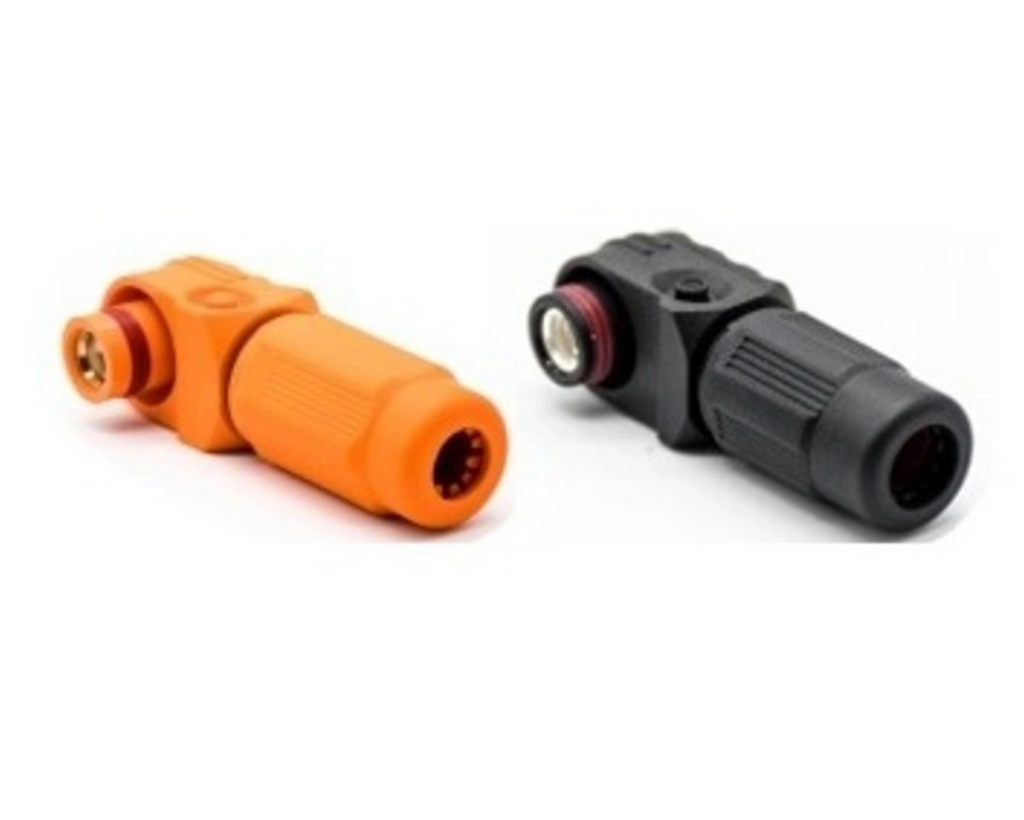

Pair consisting of a positive and negative terminal connector for Pylontech lithium batteries, compatible with models such as US2000C, US3000C, and US5000C. These high-performance connectors provide a secure connection up to 120 A at up to 1500 V DC. With IP67 protection, flame-retardant material (UL94-V0), and temperature resistance, they are ideal for demanding installations. Ready for shipment within 24 hours after payment received.
Technical Specifications
- Dimensions: T-shaped connectors, suitable for cables Ø 6–8 mm (e.g., 16–25 mm²)
- Material: Flame-retardant plastic (UL94‑V0), corrosion- and heat-resistant
- Color / Finish: Orange/Black for polarization protection
- Weight: 1 kg per pair
- Application: Secure connection of Pylontech batteries (positive & negative) in modular storage systems
-
Features:
– Rated current 120 A, rated voltage 1500 V DC
– IP67 protection (dust- and water-resistant)
– Flame-retardant material, temperature stable above 100 °C
– Easy installation via crimp or screw connection
– Color coding minimizes wiring errors
Product Details
- Model: CB120T Terminal Connectors – Pair
- Product Type: High-current battery connection (positive & negative)
- Material: Flame-retardant plastic (UL94-V0)
-
Special Advantages:
– Robust construction for reliable performance under high load
– Weather- and temperature-resistant – ideal for outdoor or demanding environments
– Color coding (Orange/Black) simplifies installation and reduces risk of mistakes
