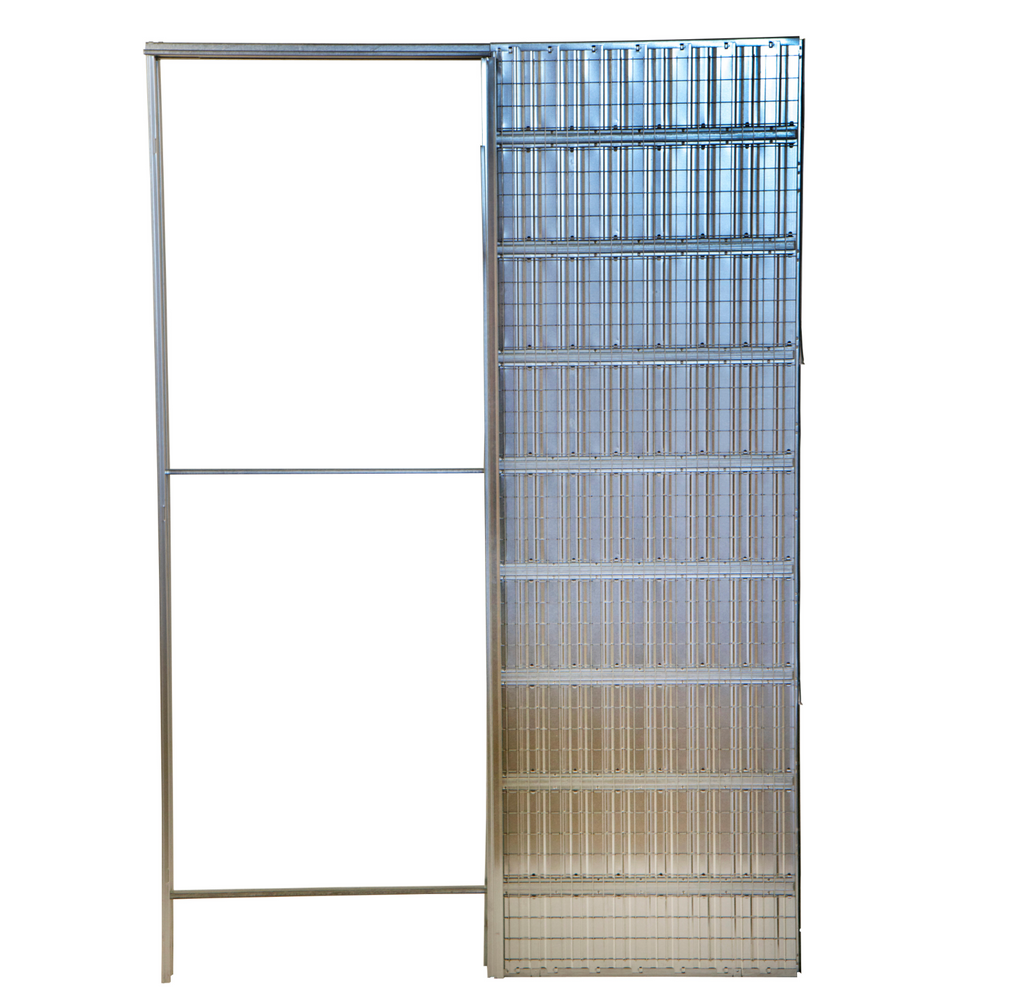

Robust built-in frame for interior sliding doors in masonry and plaster walls. The metal structure is formed into a corrugated panel and, combined with cross Omega reinforcements, processed into a stable unit – preventing deformation during the construction phase. The crossbeam can be installed without tools. Suitable for door panel thicknesses up to 40 mm and weights up to 80 kg.
Ready to ship within 24 hours of payment receipt.
Technical specifications:
-
Dimensions: Wall thickness 90 mm (9 cm); door panel width 900 mm
-
Material: Metal panel with vertical ribs and cross-reinforcing Omega profiles
-
Color / Finish: Natural metal
-
Weight: approx. 24 kg net (estimated based on similar sizes)
-
Usage: Installation in plastered masonry walls (“pocket door” system)
-
Special features:
– Interlocked structure prevents deformation during construction
– Crossbeam mountable without tools
– Load capacity up to 80 kg
– Nylon rollers with ball bearings and invisible floor guide
Product detail block:
-
Model: Built-in masonry frame 9 cm – door panel 90 cm
-
Product type: Sliding door built-in system (masonry/plaster)
-
Material: Metal/Steel
-
Weight: approx. 24 kg net (estimated)
-
Origin: Spain
-
Special advantages:
– Particularly stable thanks to innovative construction
– No tools required for installation
– High load capacity (up to 80 kg)
