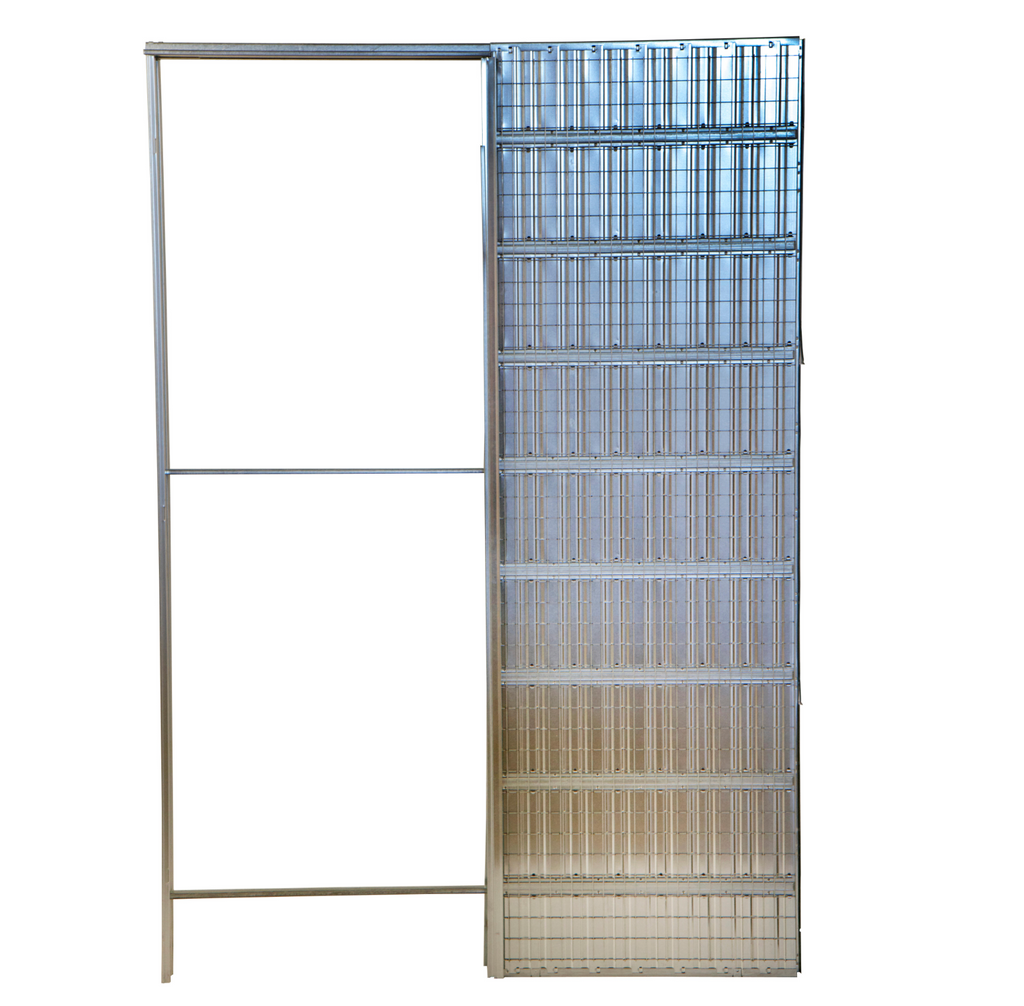

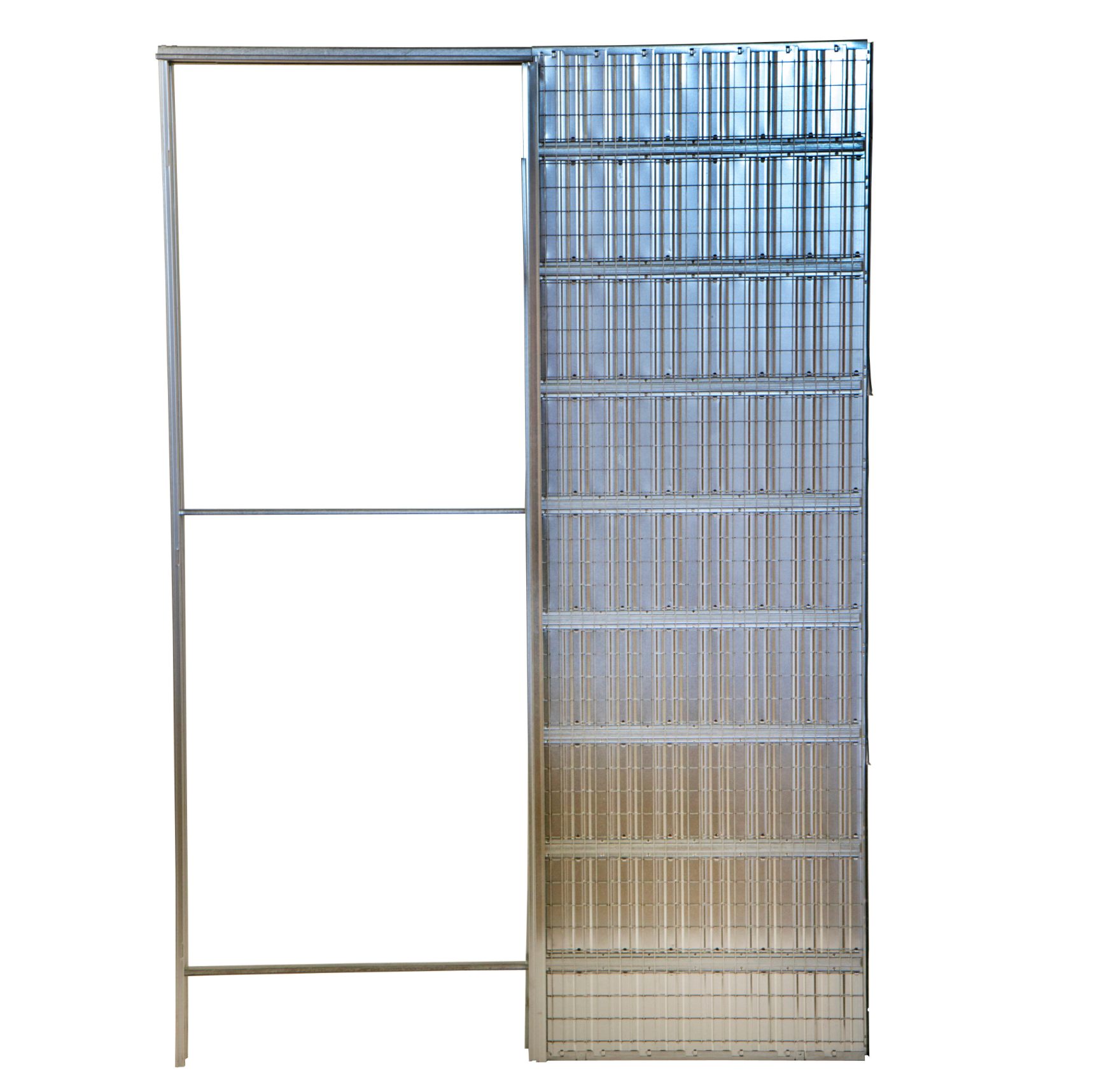

Installation system for inward-sliding doors in plastered masonry walls (Revoque). Robust metal cassette with vertical ribs for high dimensional stability; steel running track. Suitable for door panels up to 40 mm thick and 80 kg load capacity. The crossbeam can be inserted without special tools — allowing for quick, clean installation.
Ready to ship within 24 hours after payment.
⚙ Technical Specifications:
-
Dimensions: for wall thickness 90 mm; suitable for door panel width 800 mm; door panel thickness 40 mm
-
Material: Metal cassette, steel running track
-
Color / Finish: Natural metal
-
Weight: approx. 22.0 kg net
-
Usage: Installation in interior masonry/plastered walls as a pocket-door system
-
Special Features: Load capacity up to 80 kg; sturdy ribbed construction; crossbeam mountable without special tools
Product Detail Block:
-
Model: Masonry Installation Frame 9 cm – Door Panel 80 cm
-
Product Type: Sliding Door Installation System (Masonry)
-
Material: Metal/Steel
-
Weight: approx. 22.0 kg net
-
Origin: Spain
-
Special Advantages:
– Optimized for 90 mm masonry walls
– Supports door panels up to 80 kg
– Quick, clean installation without special tools
Installation system for inward-sliding doors in plastered masonry walls (Revoque). Robust metal cassette with vertical ribs for high dimensional stability; steel running track. Suitable for door panels up to 40 mm thick and 80 kg load capacity. The crossbeam can be inserted without special tools — allowing for quick, clean installation.
Ready to ship within 24 hours after payment.
⚙ Technical Specifications:
-
Dimensions: for wall thickness 90 mm; suitable for door panel width 800 mm; door panel thickness 40 mm
-
Material: Metal cassette, steel running track
-
Color / Finish: Natural metal
-
Weight: approx. 22.0 kg net
-
Usage: Installation in interior masonry/plastered walls as a pocket-door system
-
Special Features: Load capacity up to 80 kg; sturdy ribbed construction; crossbeam mountable without special tools
Product Detail Block:
-
Model: Masonry Installation Frame 9 cm – Door Panel 80 cm
-
Product Type: Sliding Door Installation System (Masonry)
-
Material: Metal/Steel
-
Weight: approx. 22.0 kg net
-
Origin: Spain
-
Special Advantages:
– Optimized for 90 mm masonry walls
– Supports door panels up to 80 kg
– Quick, clean installation without special tools
