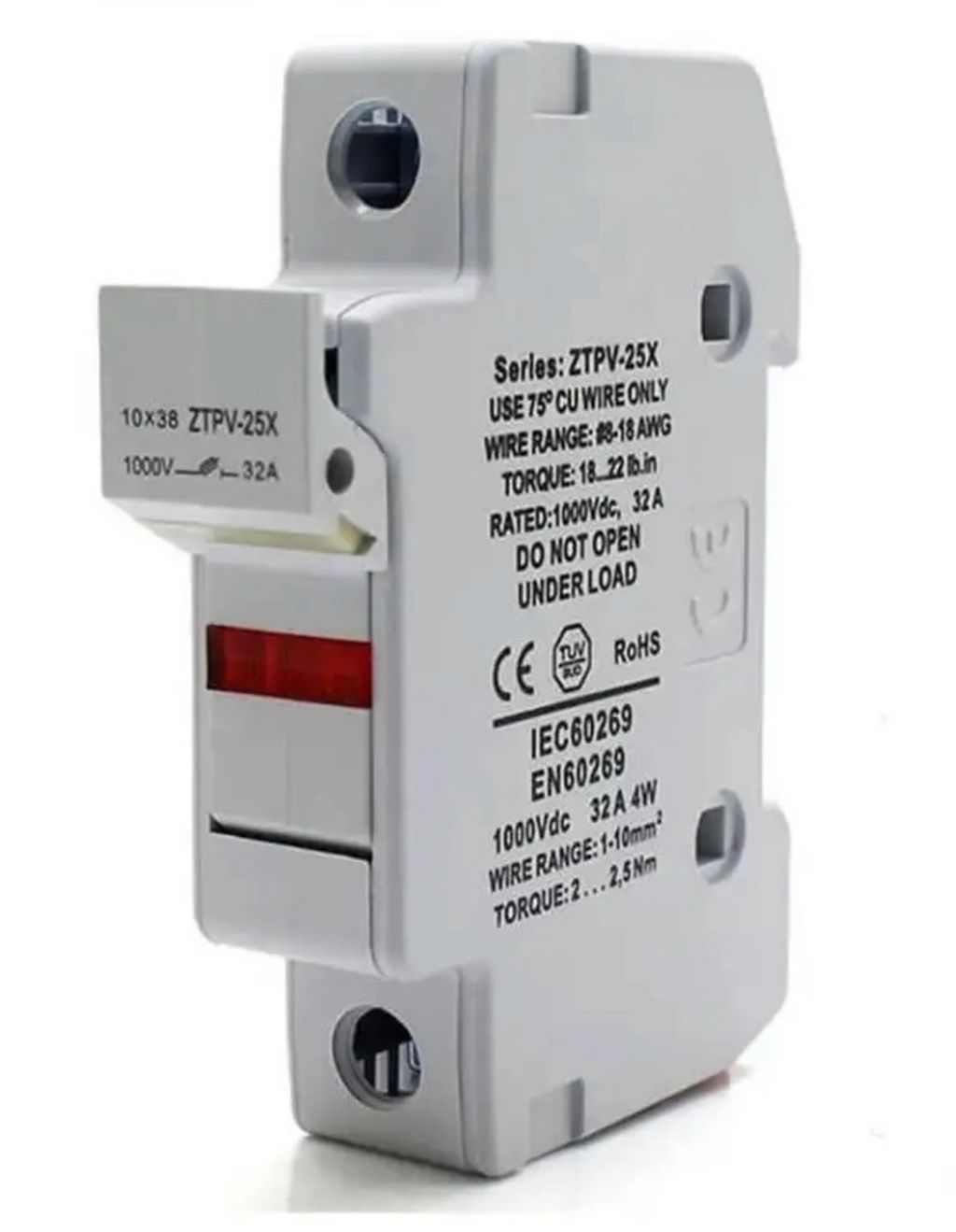

Single-pole fuse holder for 10×38 mm fuses, suitable for photovoltaic installations up to 1000 V DC. Made from high-temperature resistant and self-extinguishing plastics, with silver-plated copper contacts – for safe and reliable protection of PV strings. Ready for shipment within 24 hours after receipt of payment.
Technical Specifications
-
Dimensions: approx. 18 × 60 × 78 mm (according to web sources – Tiensol)
-
Material: Durable, self-extinguishing plastic with silver-plated copper contactsUse: Mounting of gPV fuses (10×38 mm) in PV system strings for overcurrent and short-circuit protection
-
Special Features:
– Rated for up to 1000 V DC, nominal current depends on fuse selection
– High switching capacity and operating temperature tolerance up to approx. 70 °C (typical PV holder data)
– Protection class IP20 (with cable diameter ≤ 4.5 mm using accessories)
Product Details
-
Model: Fuse Holder 10 × 38 mm – Single-Pole
-
Product Type: Fuse holder for PV applications (gPV)
-
Material: Plastic housing with metal contacts
-
Weight: approx. 0.011 kg net
-
Origin: Not specified
-
Special Advantages:
– Compact solution for protecting PV strings
– Manufacturer-rated for high thermal and mechanical stress
– Easy mounting (single module), high protection class IP20 (expandable if needed)
