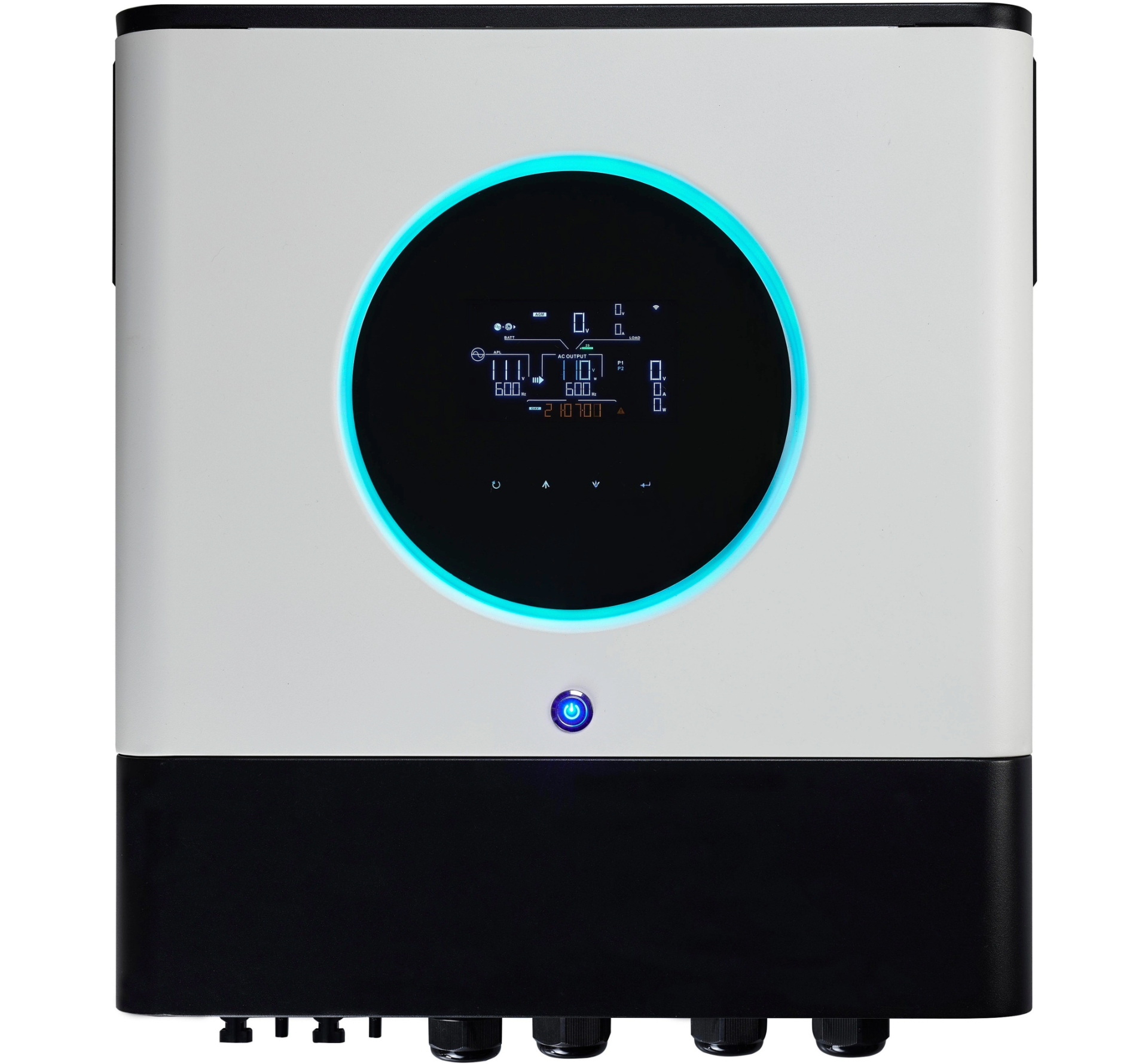

Powerful 8 kW hybrid inverter (Axpert MAX II Twin) with two independent AC outputs for intelligent load management. Integrated MPPT solar charging (150 A) with high flexibility, intuitive color LCD, Wi-Fi monitoring, and parallel expandability (up to 6 units). Ideal for demanding off-grid or hybrid photovoltaic applications. Ready for dispatch within 24 hours of payment receipt.
Technical Specifications:
-
Rated Power: 8 000 VA / 8 000 W
-
Battery Voltage: 48 V DC (float voltage approx. 54 V, protection shutdown approx. 66 V)
-
AC Input: 230 V AC, voltage range: 170–280 V (PC mode), 90–280 V (appliances)
-
Efficiency (Peak): approx. 93 %
-
Surge Power: up to 16 000 VA
-
Switching Time (Backup Mode): typ. 10 ms (PC mode), 20 ms (appliances)
-
Solar Charging: MPPT 150 A, max PV power 8 000 W (two times 4 000 W), voltage range 90–450 V, max MPP voltage 500 V
-
AC Charging Power: max. 120 A
-
Special Features: Touch color display (5″), RGB status bar, Wi-Fi, USB On-the-Go, BMS interface, DC output, anti-dust kit, replaceable fan
-
Parallel Capable: up to 6 units
-
Physical Dimensions: approx. 158 × 504 × 531 mm; Weight approx. 20 kg
-
Environment: Humidity 5–95 %, Operating Temperature –10 °C to +50 °C
-
Waveform: Pure Sine
Product Details:
-
Model: Axpert MAX II Twin 8 kW (48 V)
-
Product Type: Hybrid inverter with dual output & MPPT charging function
-
Material: Robust metal housing with color LCD, RGB status light, fan, Wi-Fi module
-
Weight: approx. 20 kg net
-
Origin: Voltronic Power (Axpert Series)
-
Key Advantages:
– Dual-channel outputs for intelligent load distribution
– High charging & inverter power in a single unit
– Intuitive operation & extensive monitoring options
– Modular system through parallel connection
– Dust- and maintenance-friendly, ideal for demanding applications
