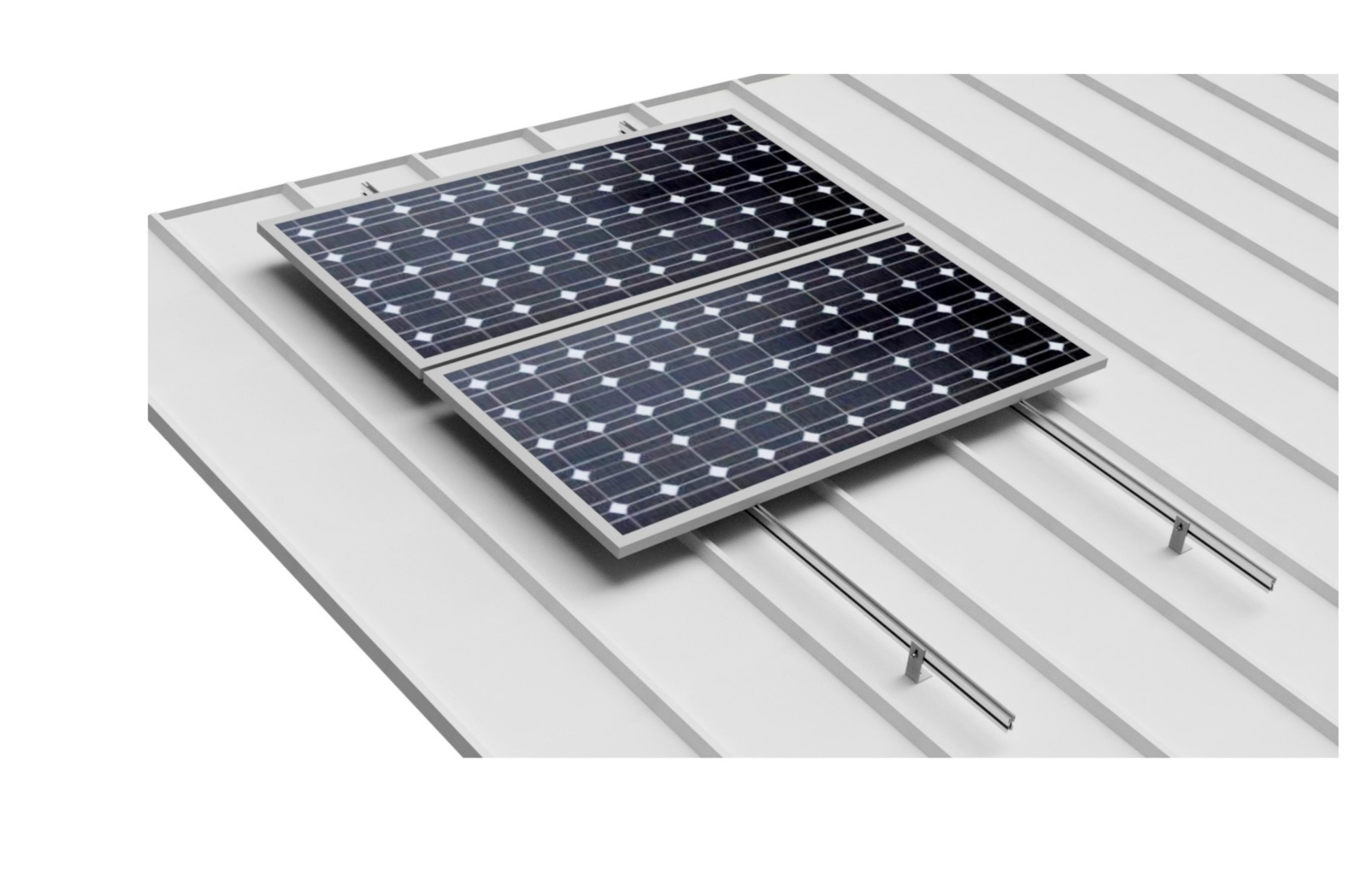

The Sunfer 03V6 Coplanar Kit is a high-quality mounting structure for up to 6 solar modules in vertical orientation – especially suitable for metal roof constructions. The structure, made from the robust aluminum alloy EN AW‑6005A T6, features pre-fabricated profile rails, adjustable central and side clamps, and EPDM seals for reliable water protection. This system is optimized for modules with dimensions up to 2279 × 1150 mm and frame thicknesses of 30–45 mm. The kit is easy to assemble, modularly expandable, and offers long service life – ready for shipping within 24 hours after payment receipt.
Technical Specifications
The mounting kit is designed as a coplanar system for pitched metal roofs. It includes ten Coplanar-S03 mounts, four adjustable side clamps (S10), twelve central clamps (S11), eight G1-1800 profiles, six G1 connectors, and four G1 end caps. The structure is suitable for vertically mounted modules up to 2279 × 1150 mm with a frame thickness of 30–45 mm. Made from aluminum EN AW‑6005A T6 with A2‑70 stainless steel fasteners. The kit is thermally resistant and carries a CE mark as well as ISO 9001 quality certification. When upgraded with the S15 connection system, the structure can be expanded indefinitely. The system is certified for wind loads up to 150 km/h.
