Tabihaus sandwich wall panel made of fiberglass-reinforced magnesium board with integrated XPS core. The product impresses with high impact resistance, moisture and fire protection (Euroclass A1), excellent acoustic and thermal properties – ideal for walls and ceilings in demanding indoor and outdoor areas. Delivery within 24 hours after receipt of payment.
⚙ Technical specifications:
-
Dimensions: 260 cm × 120 cm × 8 mm
-
Material: Fiberglass-reinforced magnesium board on XPS core (fiber gypsum)
-
Weight per panel: approx. 1.85 kg net (equivalent to 6.0 kg/m² × 3.12 m²)
-
Thermal conductivity: K ≤ 0.18 W/m·K (magnesium board)
-
Sound insulation: ≥ 22 dB
-
Moisture absorption: ≤ 2.7%
-
Impact resistance: ≥ 1.5 kJ/m²
-
Fire protection: Euroclass A1 (s1, d0); refractory / fireproof
-
Vapor diffusion: μ = 2.1
-
Other characteristics: High load-bearing capacity, no mold formation, dimensionally stable under freeze-thaw cycles
Product detail block:
-

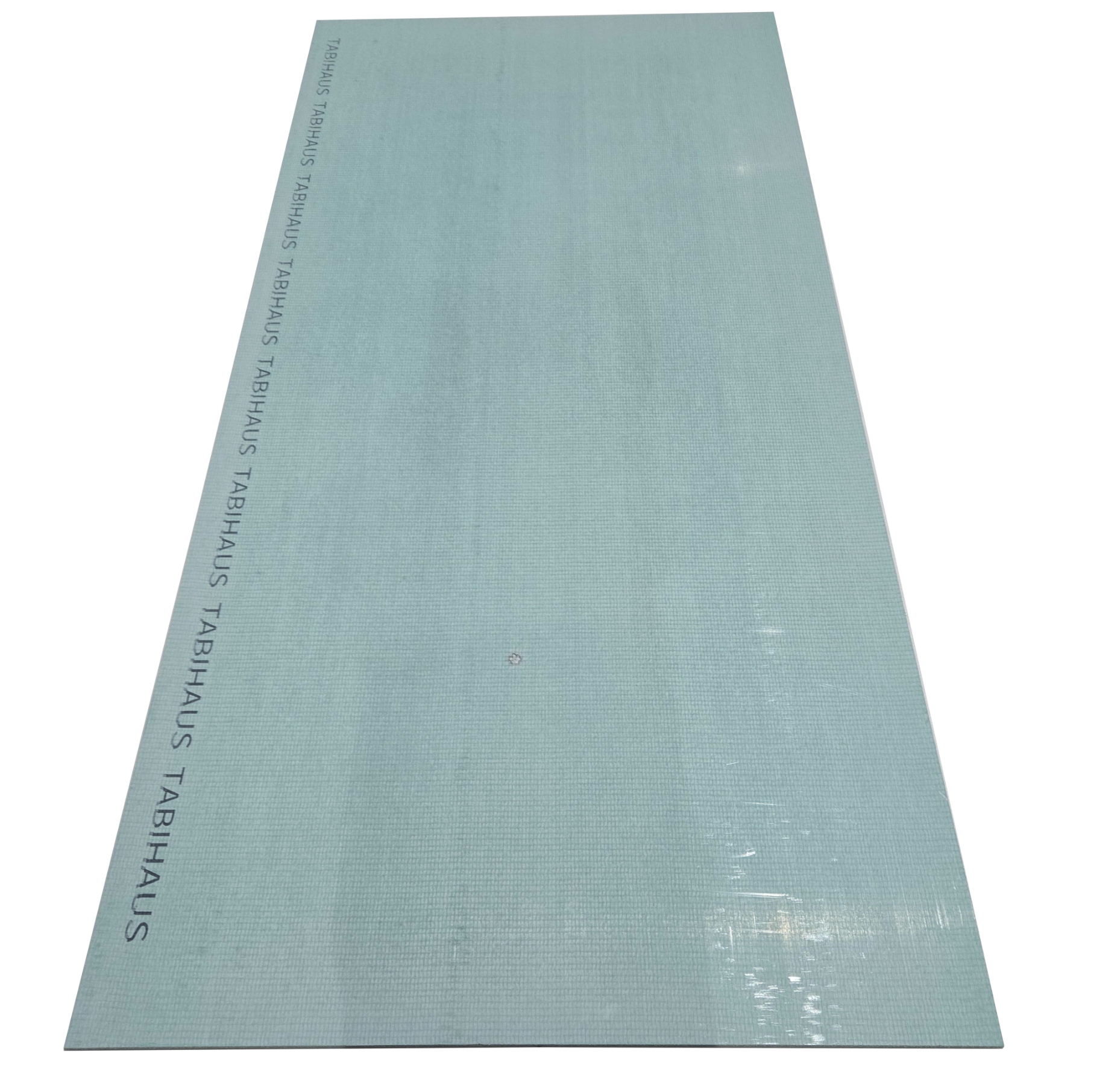

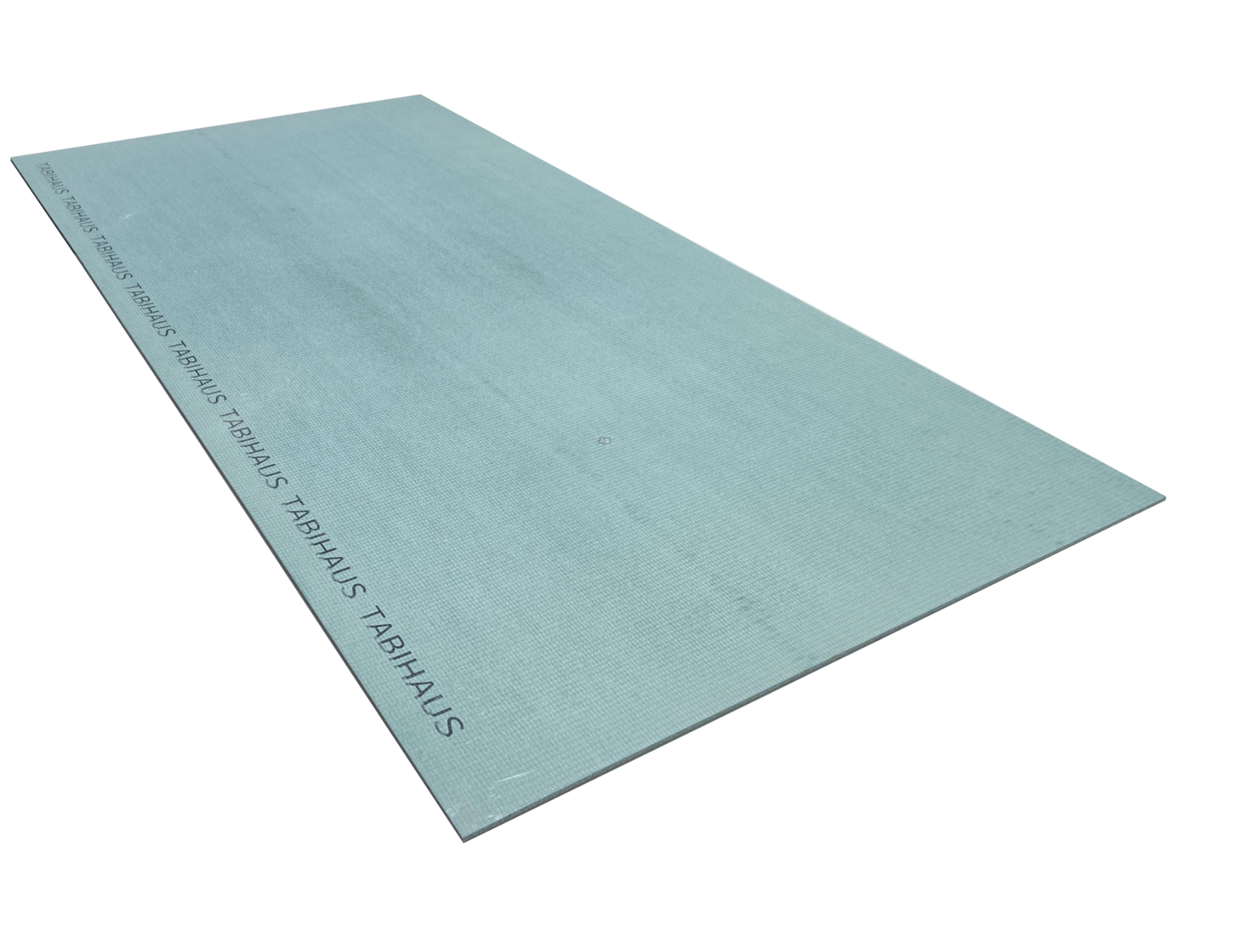

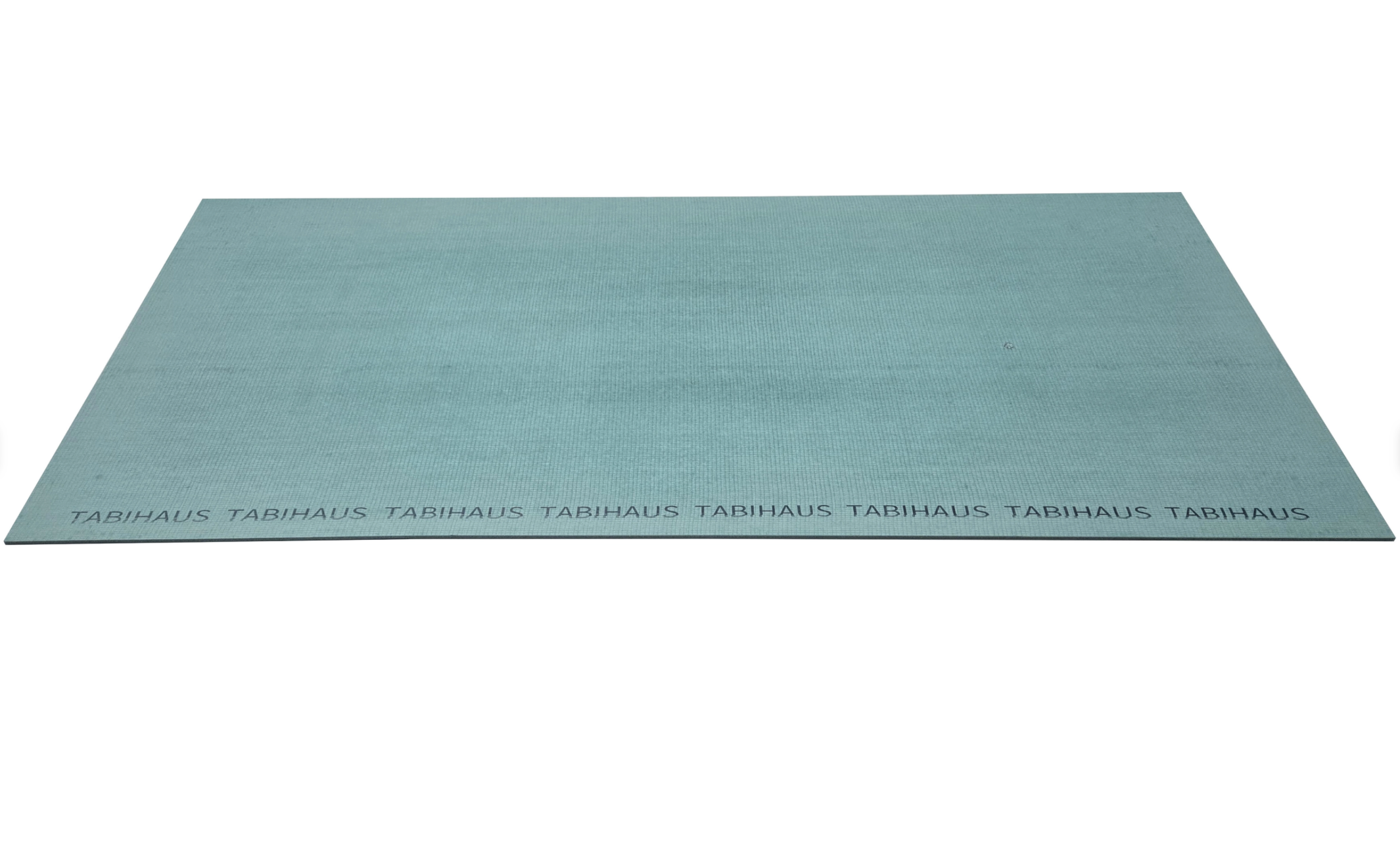

Model: Tabihaus magnesium fiber board 260 × 120 × 0.8 cm
-
Product type: Fiber magnesium composite panel
-
Material: Fiberglass magnesium board with XPS insulation core
-
Weight: approx. 1.85 kg net
-
Origin: Spain
-
Special advantages:
– Lightweight, waterproof, fireproof
– Excellent for sound insulation, joint filling, installation safety
– No mold, durable and dimensionally stable
