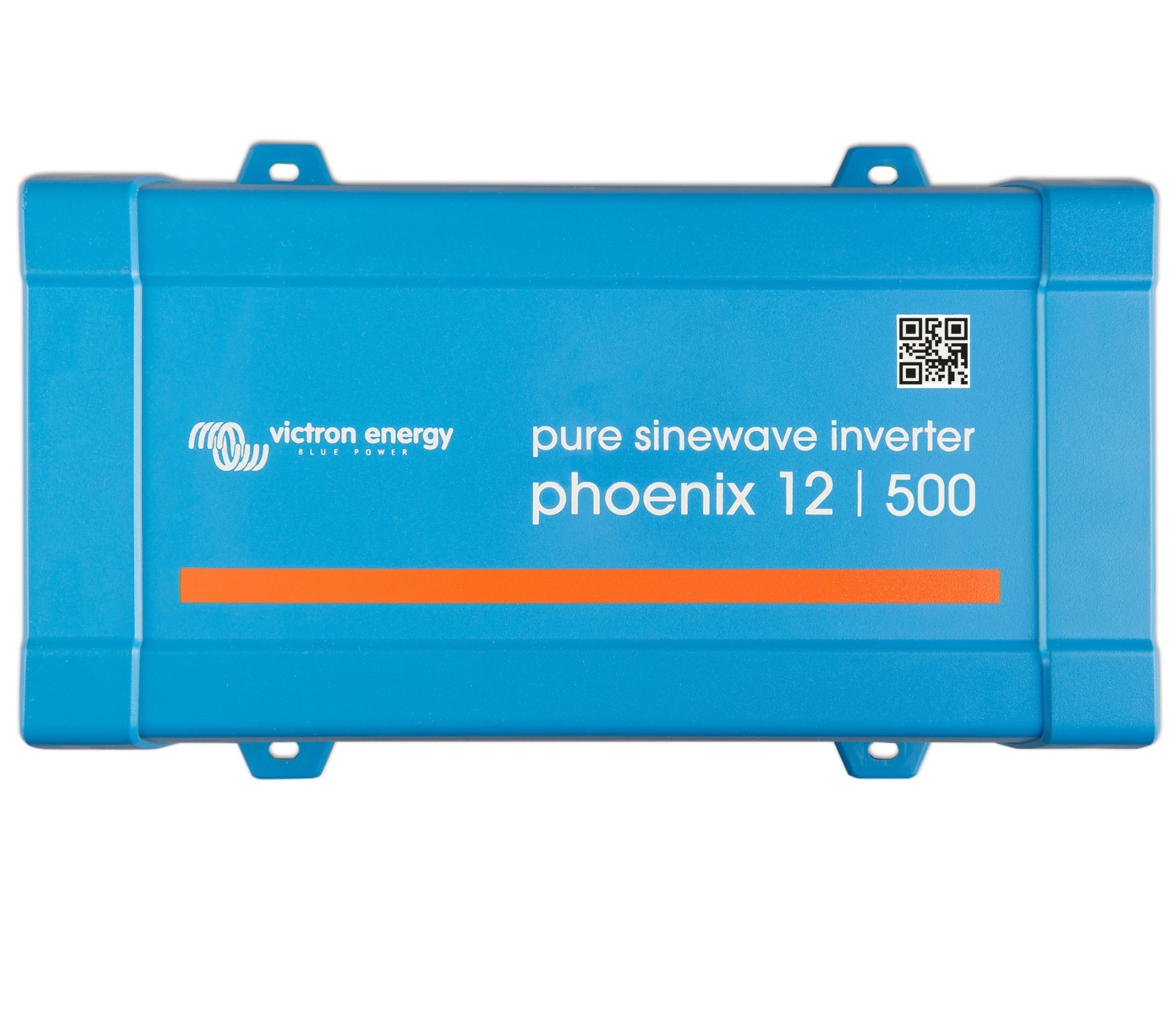

Victron Phoenix 12/500 VE.Direct – 12 V to 230 V pure sine wave inverter (Schuko output)

Product Title (English):

Victron Phoenix 12/500 VE.Direct – 12 V to 230 V Pure Sine Wave Inverter (Schuko Output)

Product Description (English):

Compact inverter (pure sine) with Schuko output, ideal for mobile applications or off-grid solar systems. Provides reliable continuous power with high surge current for demanding devices. Integrated VE.Direct interface allows energy management via smartphone or PC. Features ECO mode for improved battery efficiency. Ready for shipment within 24 hours after payment.

Technical Specifications:

• Input Voltage: 12 V DC (battery system) – automatic disconnect below 10.5 V DC

• Continuous Power: approx. 400 W at 25 °C

• Peak Power: up to 900 W (short load start capable)

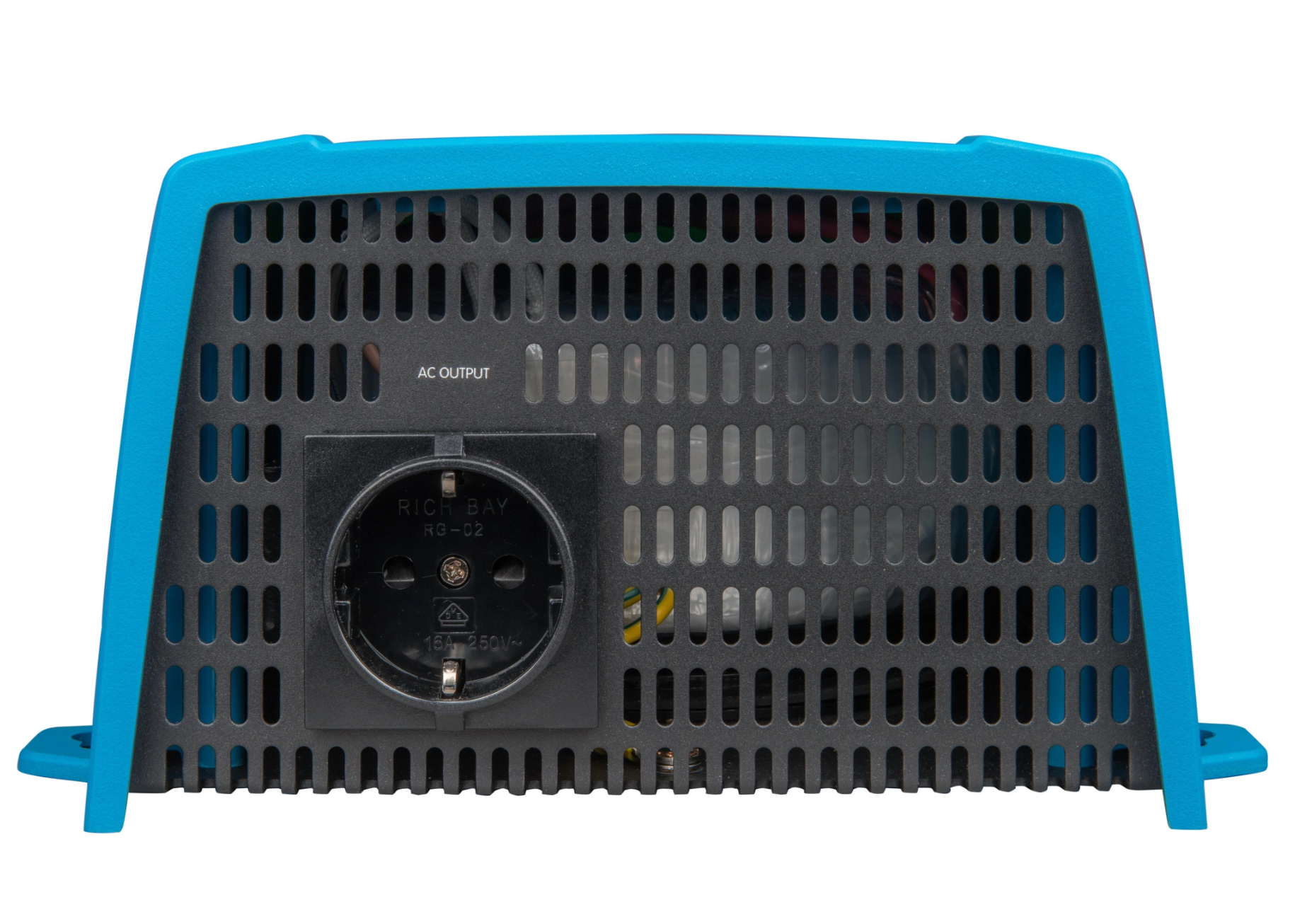

• Output Type: Pure sine wave, Schuko socket, 230 V, 50/60 Hz

• Efficiency: over 90 %

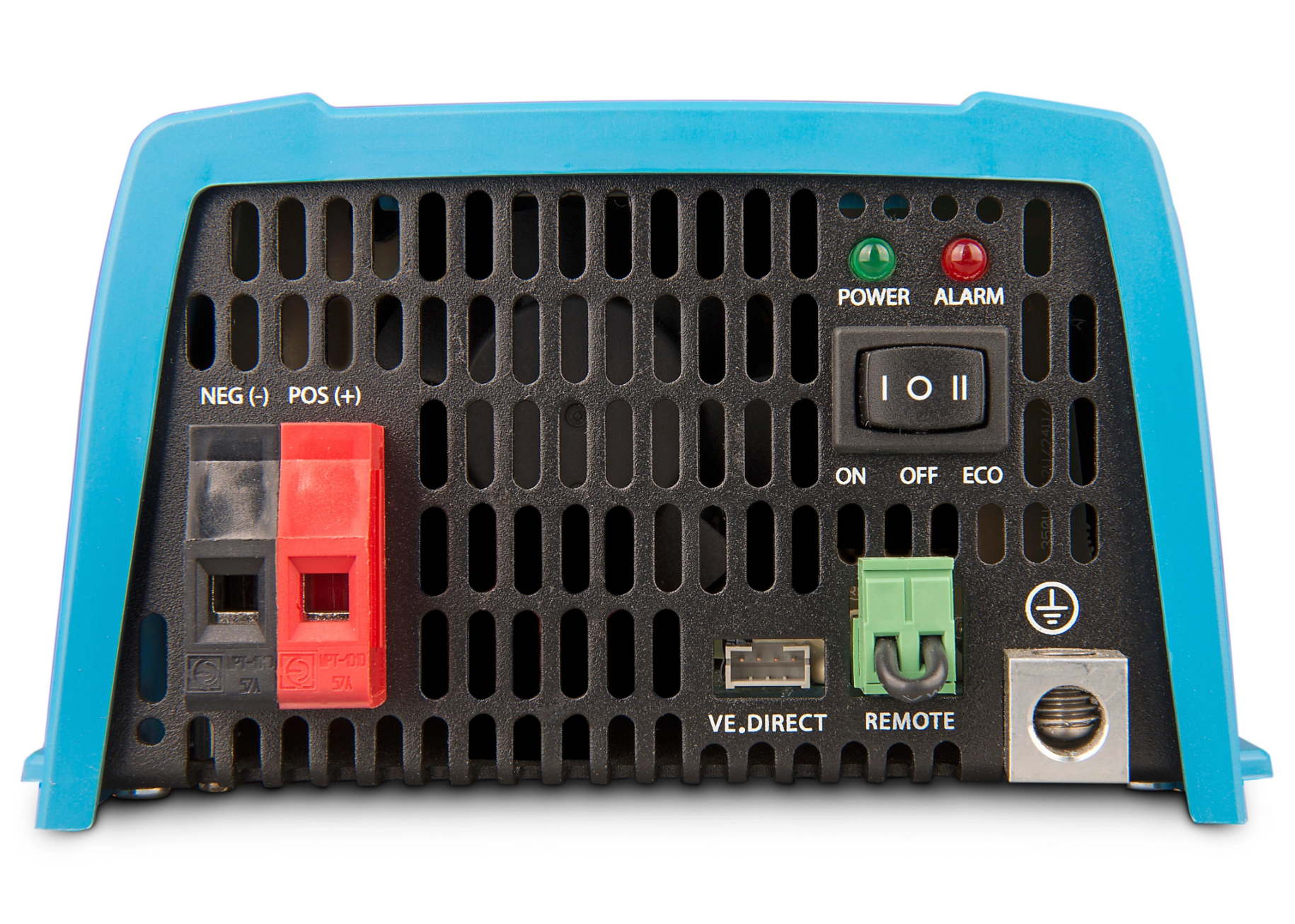

• Communication: VE.Direct port for control and monitoring (via app or PC)

• ECO Mode: Automatic standby at low load, reactivation when needed – battery-friendly

• Protection Features: Short-circuit, overheat, and battery voltage protection; configurable alarms

• Dimensions & Weight: approx. 86 × 172 × 275 mm, Weight approx. 3.9 kg

Product Detail Block:

• Model: Phoenix 12/500 VE.Direct Schuko

• Product Type: Pure sine inverter, 12 V → 230 V, Schuko

• Material: Robust metal housing for mobile and stationary use

• Weight: approx. 3.9 kg net

• Origin: Victron Energy (high-quality solar sector manufacturer)

• Special Advantages:
  – Compact, reliable inverter with high starting power
  – VE.Direct communication for smart control
  – Efficient battery usage via ECO mode
  – Protection mechanisms for safe operation even with varying battery quality
  – Ideal for low-power devices and mobile applications
