High-quality MPPT solar charge controller with ultra-fast Maximum Power Point Tracking, particularly efficient under variable sunlight conditions. The controller supports battery systems of 12, 24, and 48 V (manually adjustable to 36 V) and is suitable for PV arrays up to approximately 290 W at 12 V or 1 160 W at 48 V. With integrated Bluetooth, convenient configuration and monitoring via the VictronConnect app is possible – including features such as "BatteryLife" for automatic charge optimization and a load output for intelligent power cut-off at low battery voltage. Ready for shipment within 24 hours after receipt of payment.
Technical Specifications
-
Automatic Battery Voltage Detection – 12 V, 24 V, or 48 V (36 V manually selectable)
-
Maximum Charge Current: 20 A
-
Maximum PV Power (approx.):
-
290 W at 12 V
-
580 W at 24 V
-
1 160 W at 48 V
-
Maximum PV Input Voltage: 100 V
-
-
Peak Efficiency: over 98 % without active cooling
-
Standby Current Consumption: very low, approx. 20–25 mA
-
Charging Algorithm: Multistage-Adaptive including "BatteryLife" feature for battery care
-
Communication: Integrated Bluetooth + VE.Direct port for wired monitoring
-
Protection Functions: Includes protection against reverse polarity, short circuit, over-temperature, load disconnect at low voltage (programmable)
-
Battery Recovery: Controller starts even with a deeply discharged battery (0 V), provided cells are not permanently damaged
Product Detail Block
-

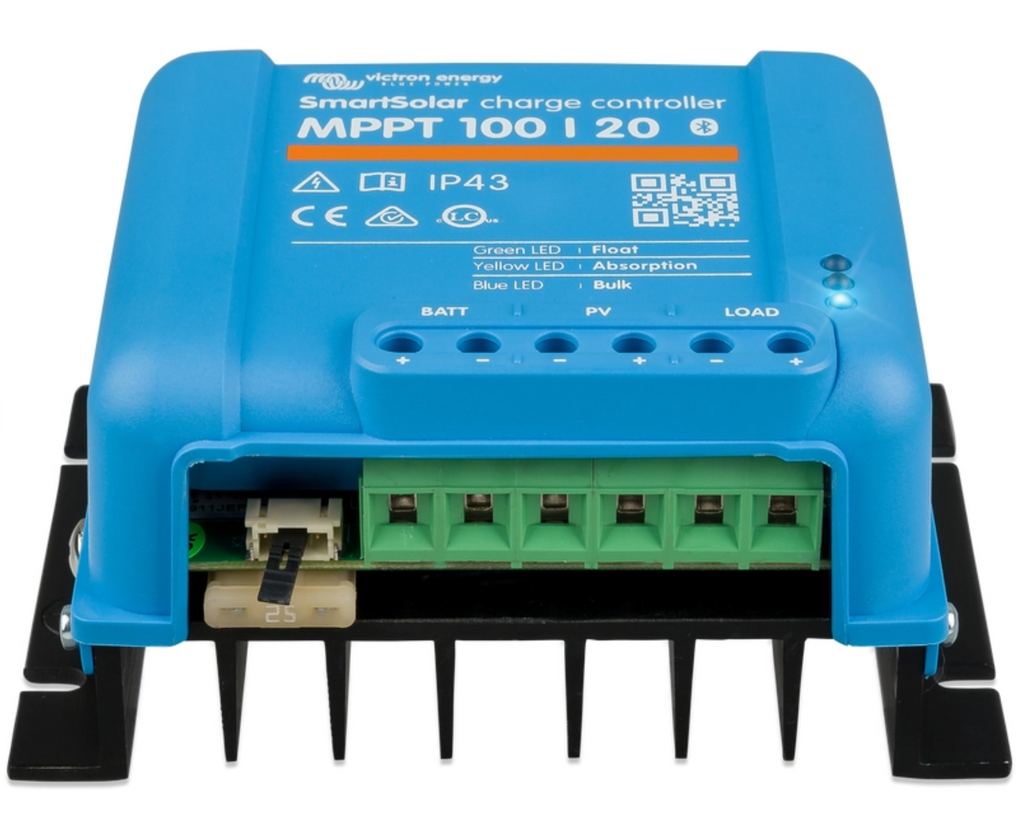

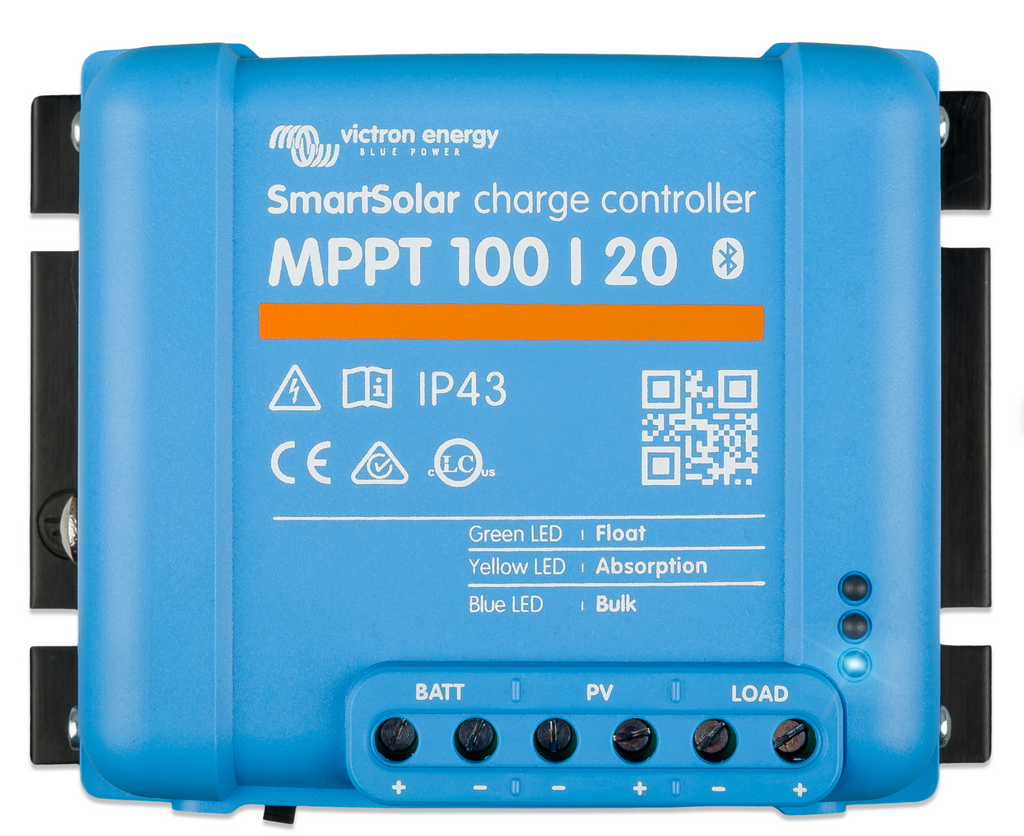

Model: SmartSolar MPPT 100/20
-
Product Type: MPPT solar charge controller (20 A, 12/24/48 V)
-
Material & Weight:
-
Robust plastic housing with integrated heat sink
-
Weight: approx. 0.6 kg
-
-
Origin: Victron Energy – renowned brand for reliable solar and off-grid technology
-
Special Advantages:
– Extremely efficient even in variable weather
– Intuitive monitoring via Bluetooth app
– Battery-friendly features such as BatteryLife and charge recovery
– Robust protection mechanisms for long-lasting use
