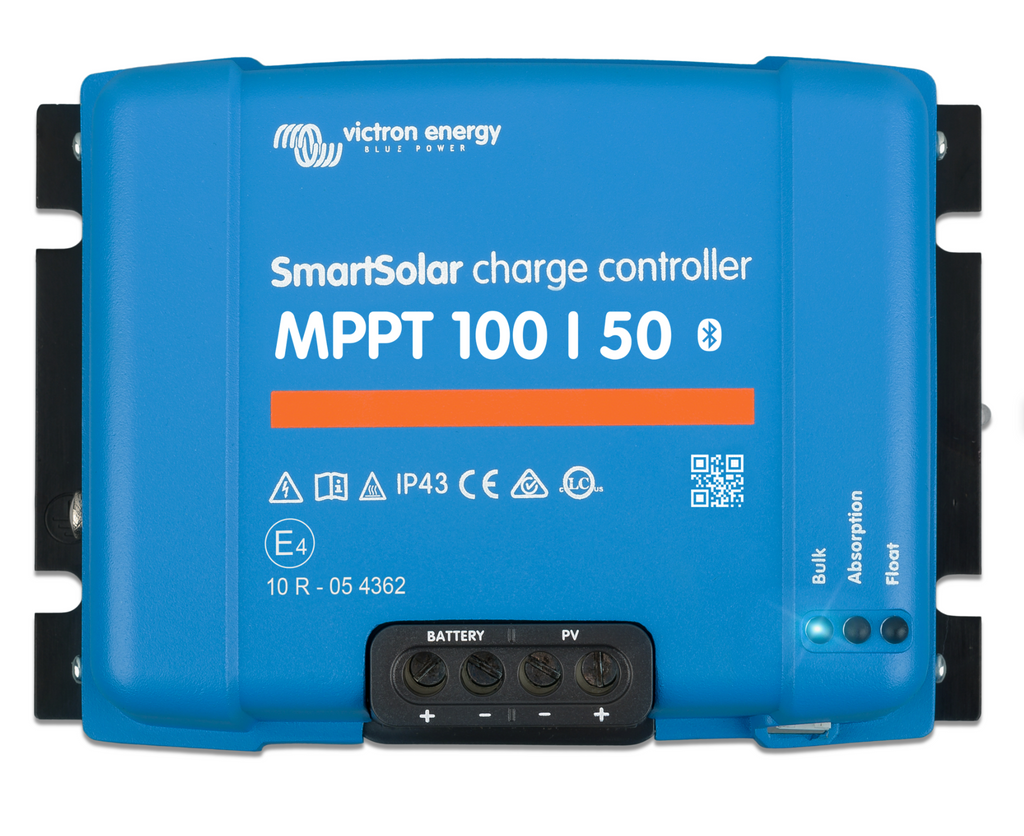

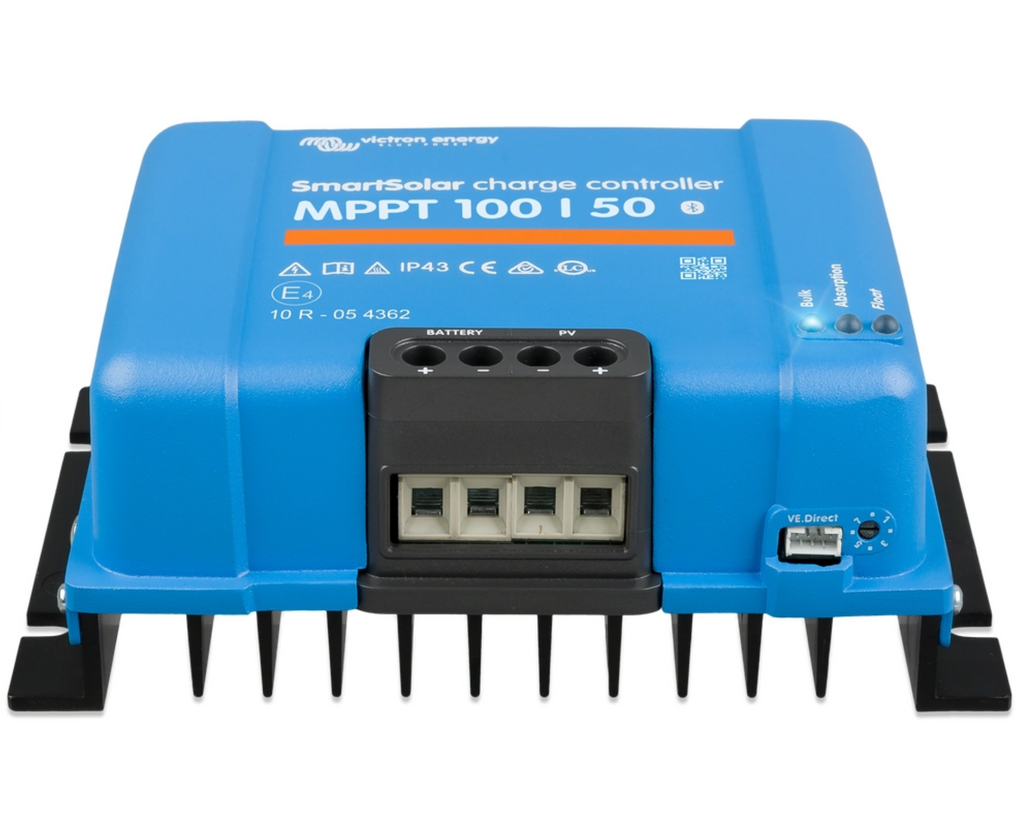

The Victron SmartSolar MPPT 100/50 is a precise MPPT solar charge controller for 12‑ and 24‑V battery systems with integrated Bluetooth control via the VictronConnect app. Thanks to ultra-fast Maximum Power Point Tracking (MPPT), it significantly increases energy yield – especially under variable sunlight or partial shading. It is also capable of recharging even deeply discharged batteries. Ready for shipment within 24 hours after receipt of payment.
Technical Specifications
-
Battery Voltage: Automatic detection – 12 V or 24 V
-
Maximum Charge Current: 50 A
-
Recommended PV Power: approx. 700 W at 12 V, approx. 1 400 W at 24 V
-
Max. PV Open-Circuit Voltage: 100 V
-
Efficiency: Over 98 % – even without active cooling
-
Self-Consumption: approx. 30 mA at 12 V, approx. 20 mA at 24 V
-
Functions: Adaptive multi-stage charging, recovery function for deeply discharged batteries, intelligent MPPT under partial shading
-
Interface: Bluetooth (invisible in app), VE.Direct port for wired monitoring
Product Detail Block
-
Model: SmartSolar MPPT 100/50
-
Product Type: MPPT solar charge controller with Bluetooth (50 A, 12/24 V)
-
Material & Weight: Robust plastic housing, approx. 1.3 kg, dimensions approx. 130 × 186 × 70 mm
-
Origin: Victron Energy – premium solar technology manufacturer
-
Special Advantages:
– Efficient energy tracking even under changing light conditions
– Convenient control and monitoring via Bluetooth app
– Excellent charge recovery for deeply discharged batteries, high efficiency without fan
