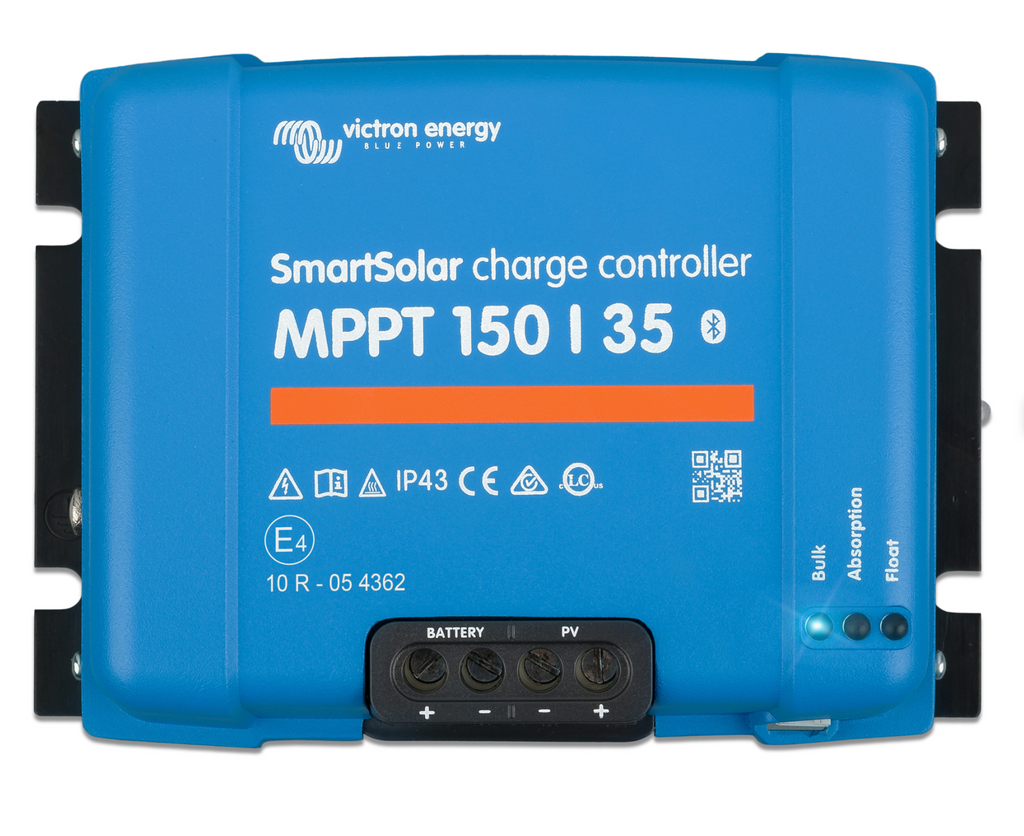

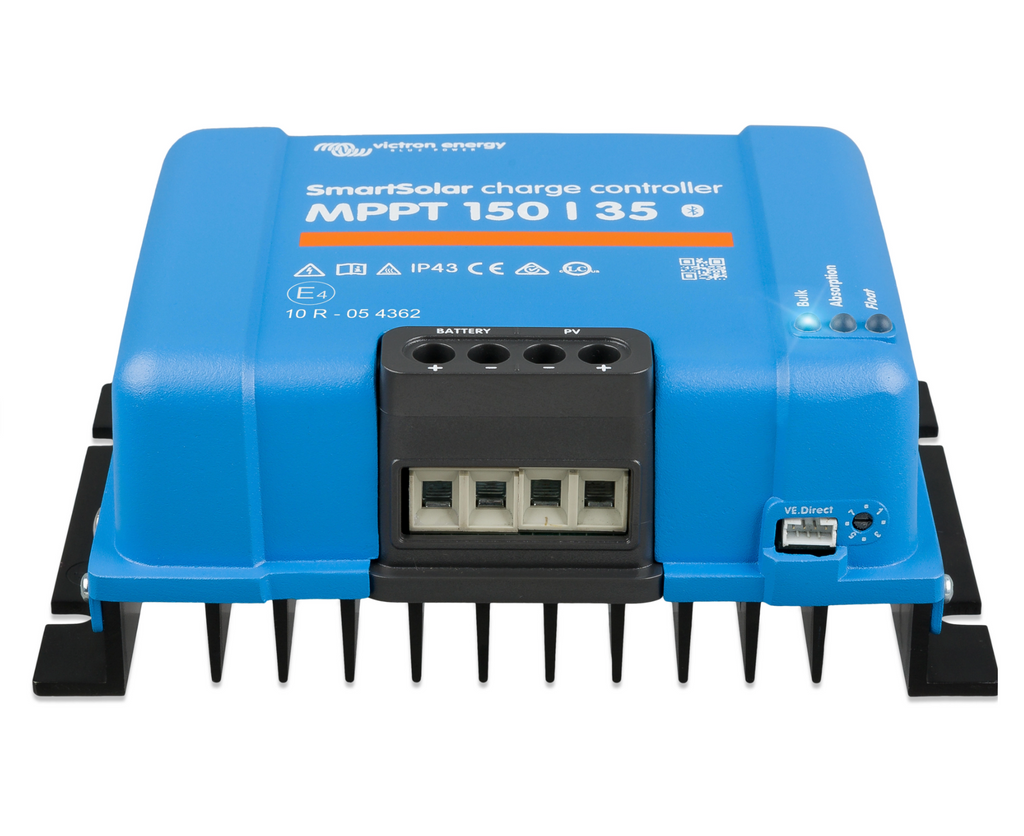

The SmartSolar MPPT 150/35 is an efficient MPPT solar charge controller that automatically detects battery voltages of 12 V, 24 V, or 48 V. Its ultra-fast Maximum Power Point Tracking maximizes energy harvest, even on variable days or under partial shading. The charging process can be conveniently monitored and configured via Bluetooth and the VictronConnect app. Even deeply discharged batteries are reliably recharged. Delivery within 24 hours after payment.
Technical Specifications
- Automatic Battery Voltage Detection: 12 V, 24 V, or 48 V (36 V manually adjustable)
- Maximum Charge Current: 35 A
- Recommended PV Power: approx. 500 W at 12 V, 1 000 W at 24 V, 2 000 W at 48 V
- Max. PV Open-Circuit Voltage: 150 V
- Highest Efficiency: over 98% (fanless)
- Self-Consumption: approx. 20 mA at 12 V, 15 mA at 24 V, 10 mA at 48 V
- Charging Algorithm: Multistage-Adaptive with eight preset charge modes
- Temperature Compensation: Integrated via NTC measurement
- Protection Functions: Reverse polarity, short circuit, overtemperature, backflow protection
- Operating Temperature Range: –30 °C to +60 °C (full power up to 40 °C)
- Communication: Integrated Bluetooth + VE.Direct port
Product Detail Block
- Model: SmartSolar MPPT 150/35
- Product Type: High-performance MPPT solar charge controller (35 A)
- Material & Weight: Robust plastic/metal housing, approx. 1.25 kg; dimensions approx. 130 × 186 × 70 mm
- Origin: Victron Energy – proven solar technology
-
Key Features:
– Intelligent MPPT for maximum efficiency, even under partial shading
– Convenient monitoring & configuration via Bluetooth app
– Fast recovery of deeply discharged batteries
– Comprehensive protection features for safe operation
